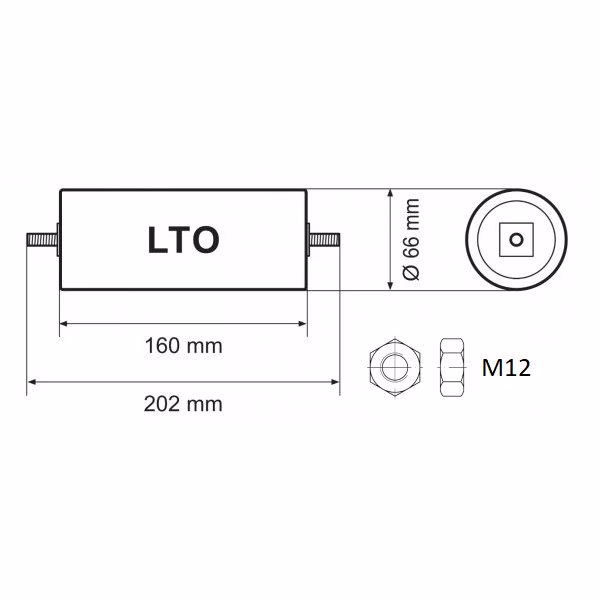

6 SINGLE CELLS GS AUDIO LTO – 2.3V / 45Ah – 66*160mm – LITHIUM TITANIUM

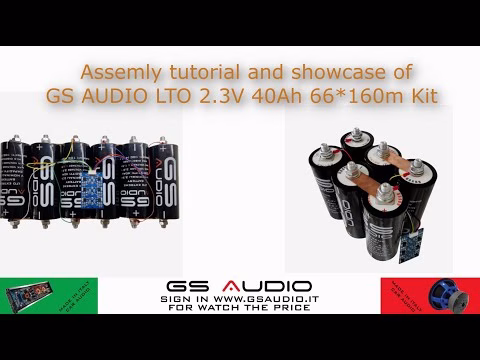

6 SINGLE CELLS GS AUDIO LTO – 2.3V / 45Ah – 66*160mmPRODUCT CURRENTLY AVAILABLE6 PIECES OF ONLY BATTERIES WITHOUT ACCESSORIES, BOLTS, BMS ETC. Video introducing the new ultra-high performance LTO Gs Audio batteries for in-car audio systems and beyond! In the video we see an entire 6-cell kit assembled with copper rods , bolts and BMS to balance each individual cell in the 6-cell series GS Audio LTO 6 x 2.3v 45Ah batteriesGS AUDIO LTO grade A cells with extremely low internal resistance, guaranteed minor 0.35 milliomPRODUCT CURRENTLY AVAILABLE and shipping throughout Europe upon request we can make kits of 12-18-24-30 and more cells!!! LTO FEATURESWhat does a lithium titanate battery look like? In the LTO battery, lithium titanate oxide (Li2TiO3) replaces graphite (carbon) in the anode, which is present in the typical lithium-ion battery instead. The cathode to match can be lithium manganese oxide (LMO) or with added cobalt (NMC). The LTO under the microscope shows a three-dimensional structure formed by lithium titanate nanocrystals. The cell voltage is 2.4 V, it can undergo rapid charging and can withstand a discharge current of 10 times the rated capacity. BENEFITS The advantages related to the new lithium titanate battery technology are that the anode surface area of the lithium titanate battery is about 100 square meters per gram instead of only 3 square meters per gram of the classical lithium ion batteries(3.7v). This greater surface area offered to the passage of electrons allows for fast charging and longer battery life. This means that less charging power is required and these batteries can be safely recharged in about 6 to 10 minutes instead of the 8 hours required for other rechargeable batteries. In addition, the charging efficiency exceeds 98%.RISKS The lower operating voltage (2.3v) compared to conventional lithium cells (3.7v) is an advantage for both safety and the environment. The absence of carbon prevents thermal instability and overheating, which are the main cause of fires in traditional storage systems. From tests conducted, verifiable by every LTO manufacturer in the world, an LTO cell subjected to a short circuit reached a maximum temperature of 90-100° C, without causing explosions or fires to which conventional lithium-polymer batteries can be subjected.   Ideal for ultra-high-performance systems where power must never fail.   Dimensions66mmx160mm (66mmx202mm including threads)TypeLith. titanoxideCell and pack weight 6~ 1.2kg each = 7.2kg/6pcsRated voltage2,3VCapacity45 AhLife16,000+ cyclesNorma. Discharge1C (45A)Maximum Discharge6C (270A)Discharge 10 sec.10C (450A)temperature-55°C – 65°C——————————————————-SAFETY TESTS CONDUCTEDShear test = ZERO FLAMESElectrical puncture test = NO FLAMESShort circuit test = NO FLAMESDrop test = NO FLAMESWatch the video presentation:
