Anl-13

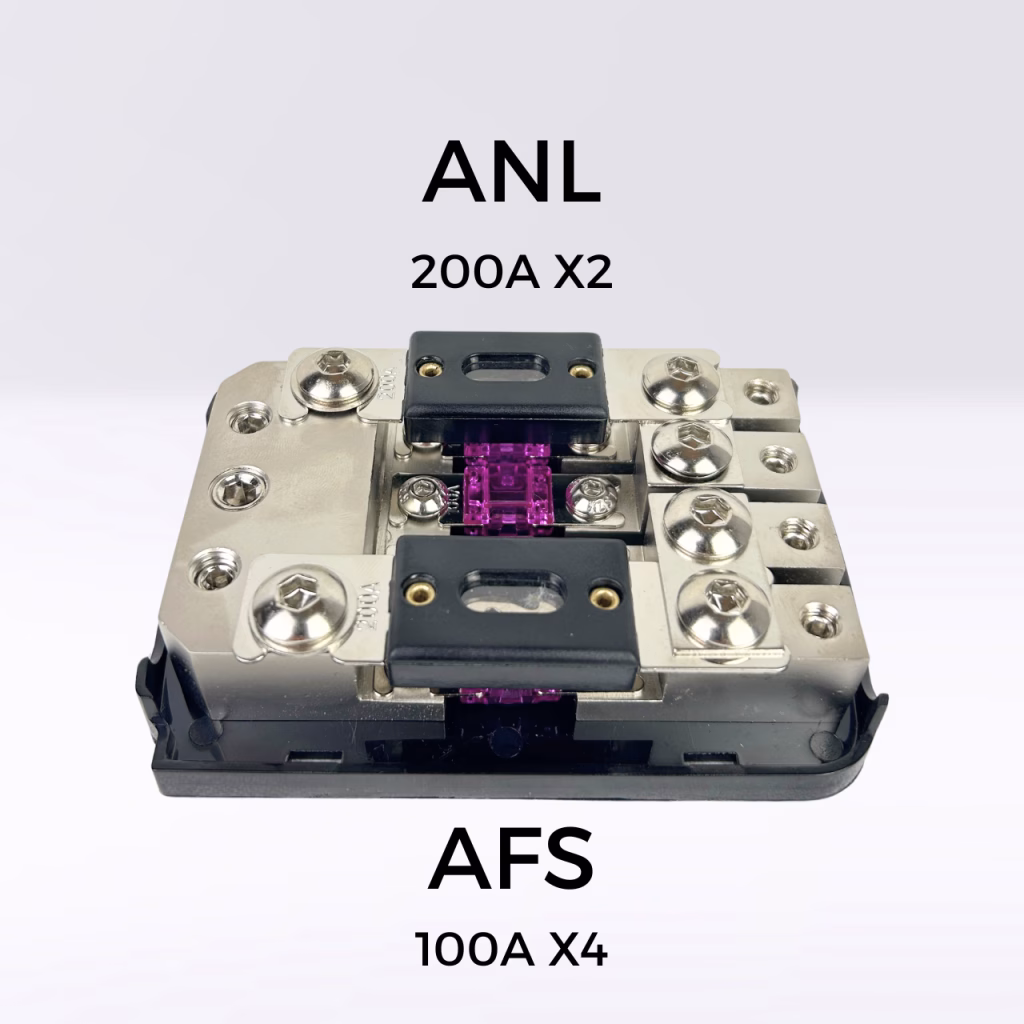

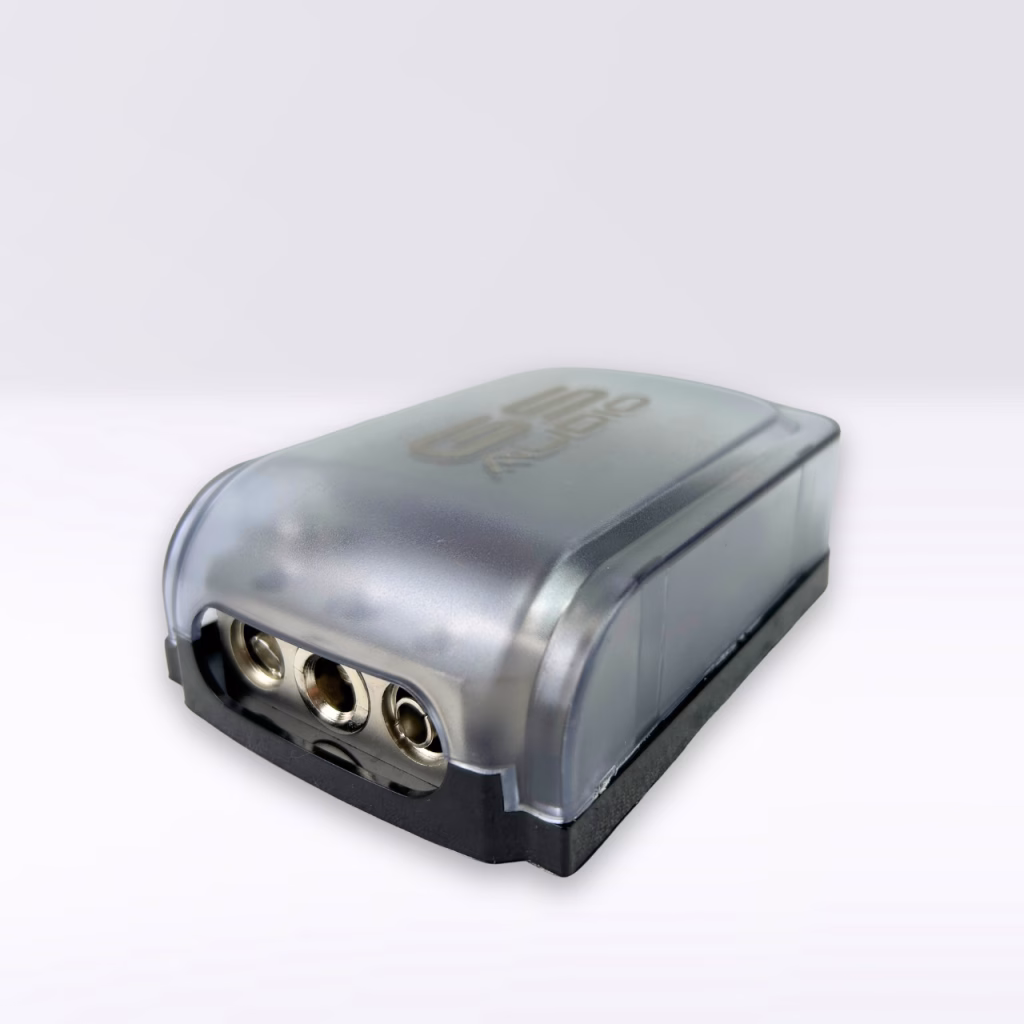

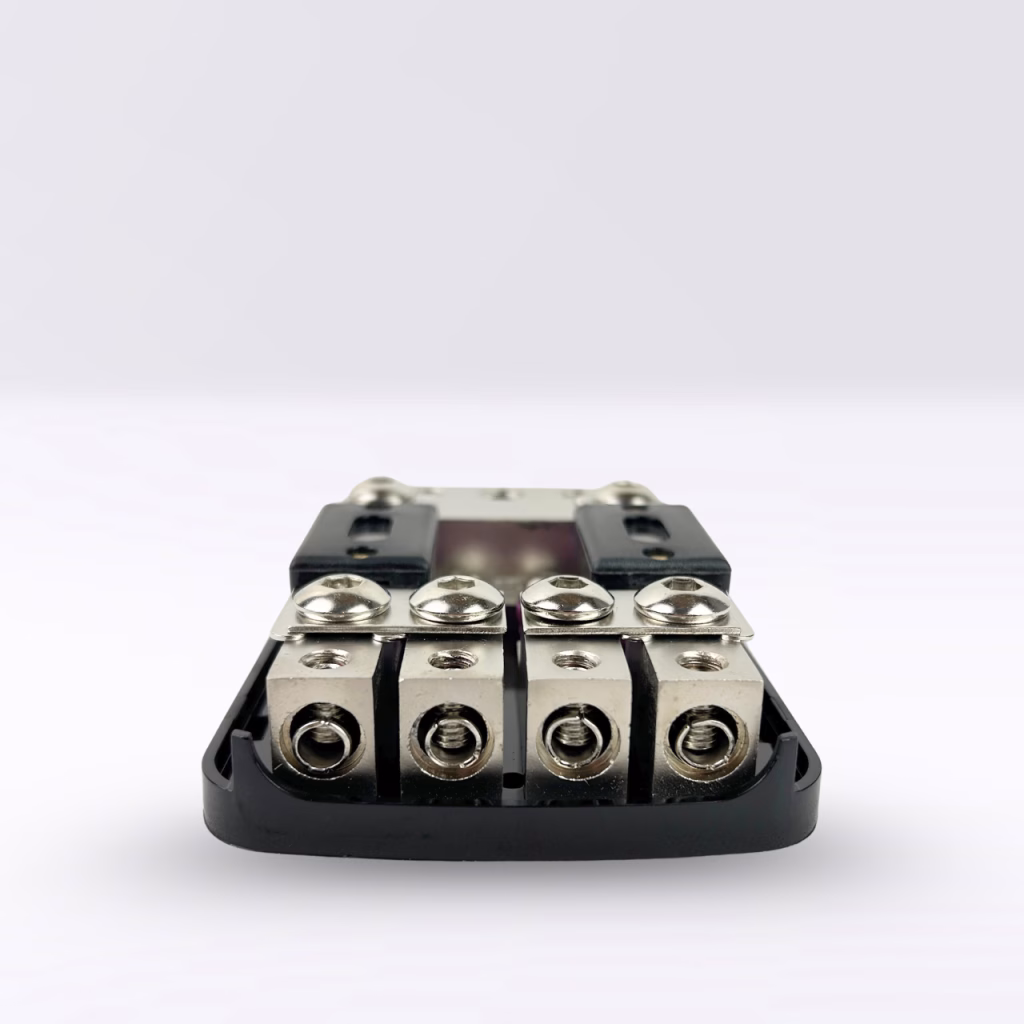

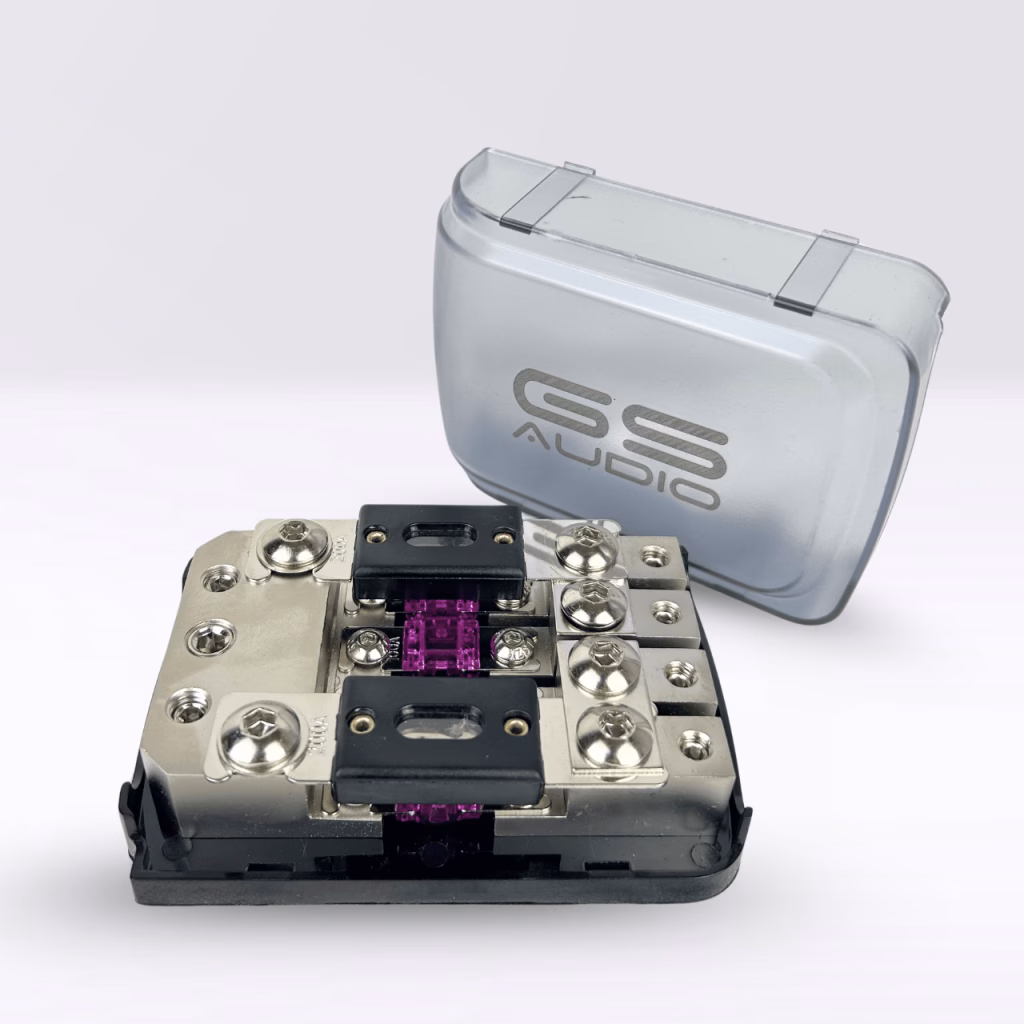

GS Audio ANL+AFS fuse holder IN:1×50 2×35 OUT:4×25 | 2/4 WayConnections: 1 input connection for cable up to 50mmq (with reduction to 25mmq) or 2 input connections for cable up to 35mmq. 4 output connections for cables up to 25mmq (with reduction)Fuse: 2 200A ANL fuse + 4 100A AFS fusesConfiguration electrical: 4 ways in parallel via AFS fuses (4x100A) or 2 ways in parallel via ANL fuses (2x200A), to sum or distribute current according to application.Professional AFS/ANL 4-way fuse holder, designed for high-current applications in car audio, marine, industrial and specialty vehicle systems. Supports both AFS (4x100A) and ANL (2x200A) fuses, offering configuration flexibility: 4-way or 2-way in parallel to sum or distribute current across multiple lines. Allows safe housing of fuses, protecting against overloads and short circuits on main power lines. Fuses included in the package.Key features:Supported fuse type: ANL and AFSCable compatibility: up to a maximum cross section of 50 mm²Cover: black opco shockproof plexiglass protective cover with engraved GS Audio logoMounting holes: prepared for secure mounting on panels or structuresIdeal for installations with multiple power lines or dual battery systemsApplications:High-power car audio systemsConnection between batteries or LTO/LiFePO4 banksInstallations on RVs, industrial and marine vehiclesProtection of main power supplies or lines from oversized alternators Need more fuses? Purchase them on our website, available ANL up to 600A and AFS up to 150A
