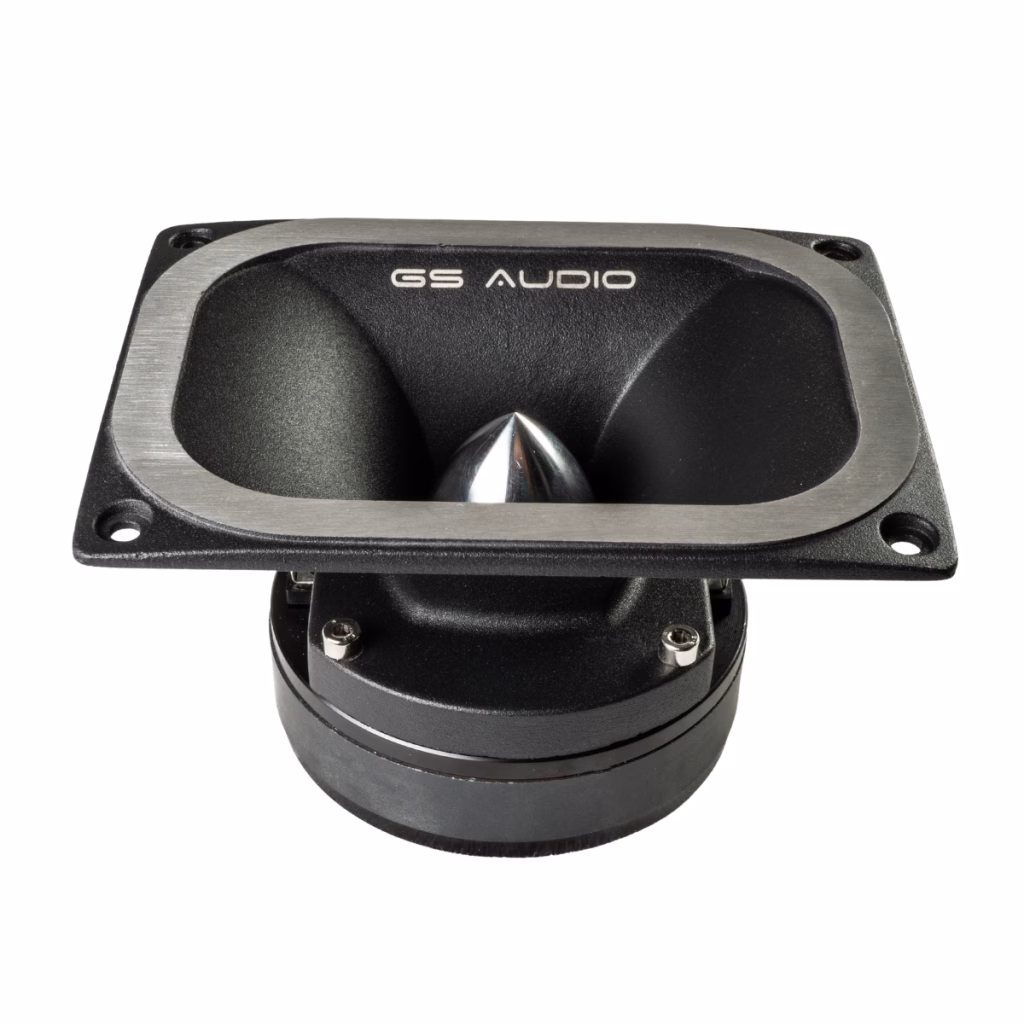

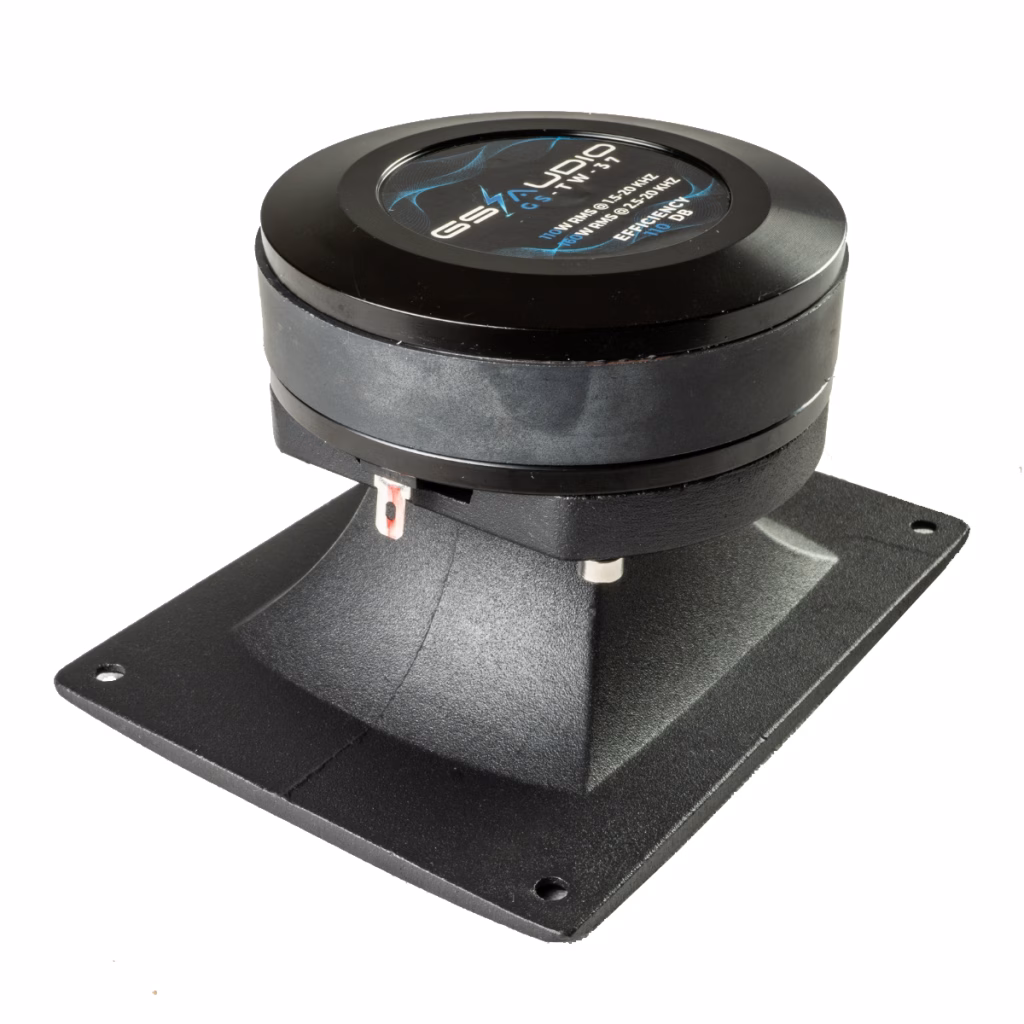

TW37 Tweeter 135*100mm – 4 Ohm – 160Wrms – 37mm coil

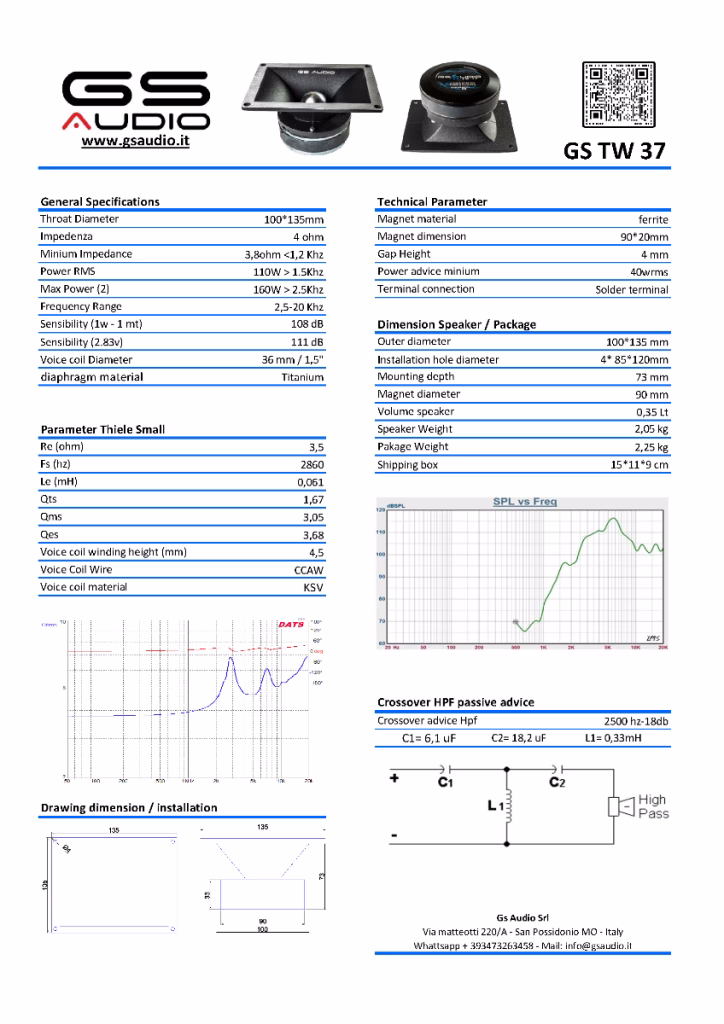

Gs Audio TW37 – 135*100mm Tweeter – 4 Ohms – 160Wrms – 37mm CoilPrice referred to single pieceThe 135 x 105mm GS TW 37 rectangular rhombic high-frequency compression driver is designed to have the best ratio of efficiency to frequency descent, specifically for use in uro fronts and ‘wall’ installations where a generously sized tweeter needs to be matched to 250-300mm woofers.Titanium diaphragm, ultralight coil and 90mm ferrite magnet were the winning choices to achieve good linearity above 2500Hz and outstanding compactness.The center phase shifter with a high flare ensures low distortion and excellent reproduction of mid-high frequencies.The voice coil is 36mm copper clad aluminum wire (CCAW), for other features I leave you to the data sheetDownload the data sheet in PDF here
