TW44 tweeter – 2.5/20KHz – 4 Ohm – 200Wrms – 44mm coil

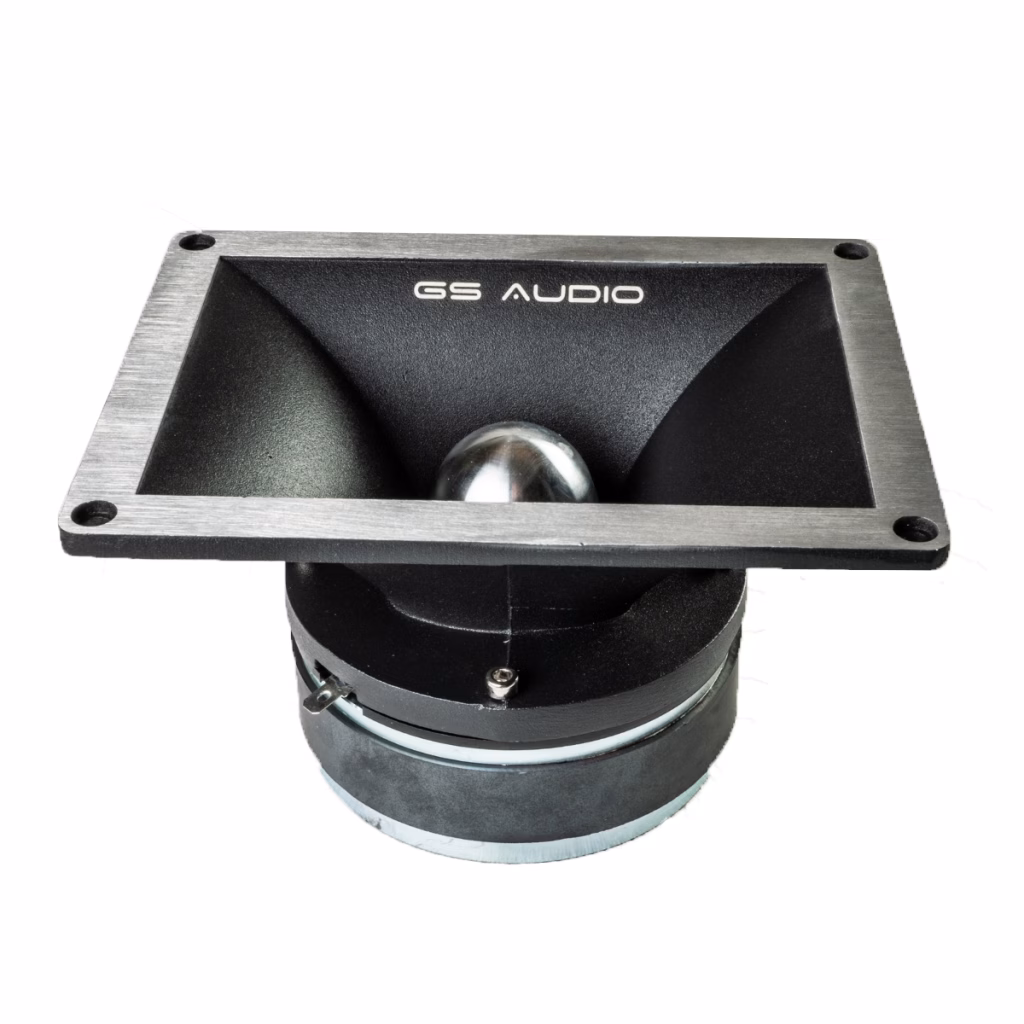

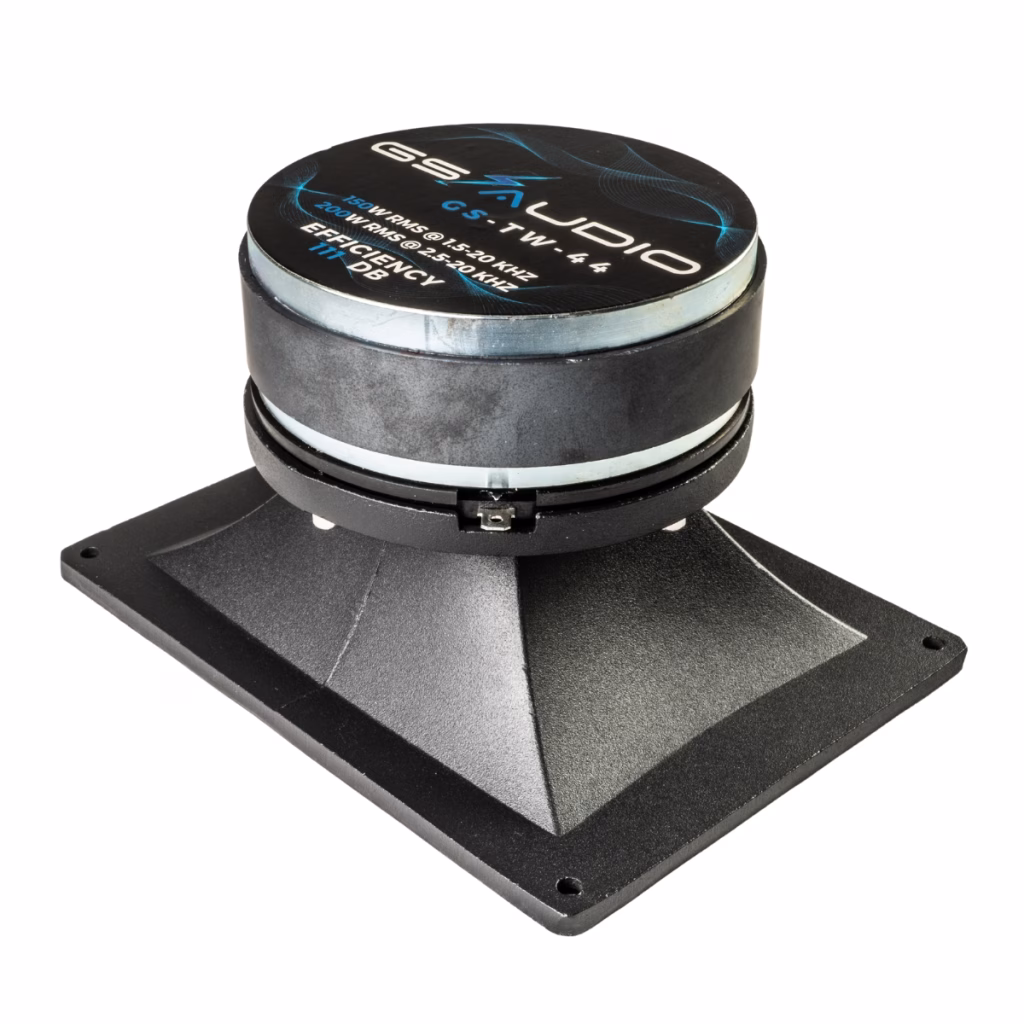

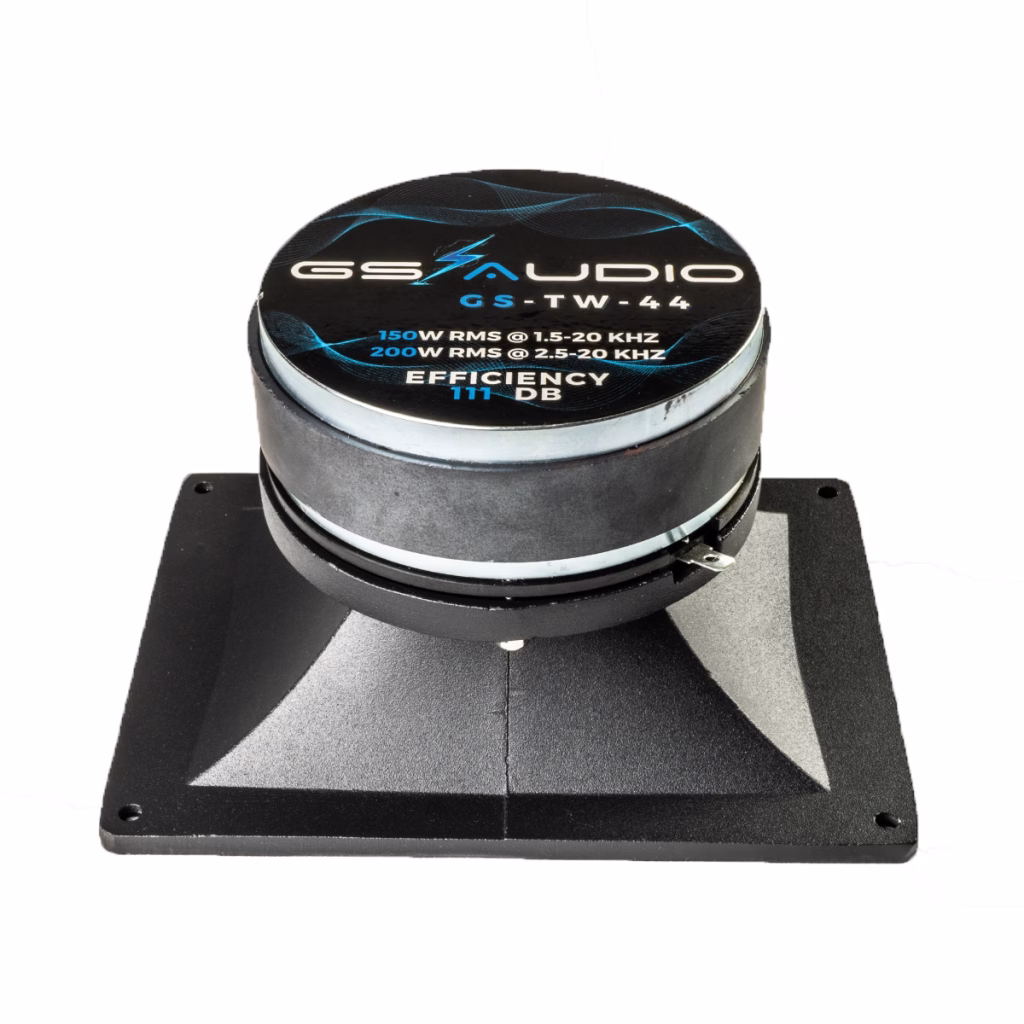

Tweeter TW44 – 2.5/20KHz – 4 Ohm – 200Wrms – 44mm coilPrice refers to single pieceThe 160 x 120mm GS TW 44 rectangular horn high-frequency compression driver is designed to have the best ratio of efficiency to frequency descent, specifically for use in screaming fronts and ‘wall-mount’ installations where a generously sized tw needs to be matched to 250-300mm woofers.Titanium diaphragm, ultralight coil and 100mm ferrite magnet were the winning choices to achieve good linearity above 2000Hz and outstanding compactness.The center phase shifter with a high flare ensures low distortion and excellent reproduction of mid-high frequencies.The voice coil is 44mm copper clad aluminum wire (CCAW), for other features I leave you to the data sheetDownload the data sheet in PDF here
