Korkearesoluutioinen 17,8 cm: n (7 ′′)TFT näyttö. Kaksi sisääntuloa, kameralle tai videosignaalille. Voit tietenkin myös kytkeä DVD-soittimen tai DVB-T-vastaanottimen videosignaalin viihdyttääkseen matkustajia ajon aikana
| 17.8cm (7′′) active matrix digital TFT LCD display (color) | |
| 2x video inputs | |
| AHD 720P, AHD 1080P compatible | |
| CVBS (FBAS) compatible | |
| Brightness 1000 cd/m² | |
| Contrast 500:1 | |
| Viewing angle 85°/85°/85°/85° (L/R/O/U) | |
| LED backlight | |
| 16:9 screen format | |
| Extremely high resolution of 1024 x 600 pixels | |
| ON/OFF timer | |
| NTSC/PAL compatible | |

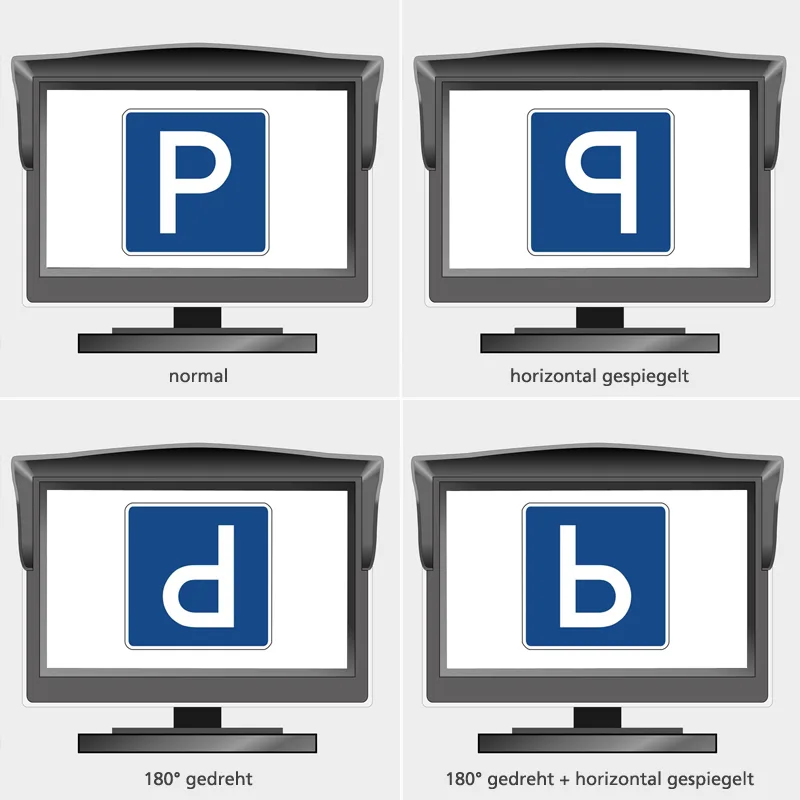

| Image reproduction normal/mirrored adjustable | |
| Image reproduction normal/rotated adjustable | |
| Guide lines adjustable/deactivatable | |
| 6 menu languages | |
| Automatic NTSC/PAL switching | |
| Automatic switch-on when operating voltage is applied | |

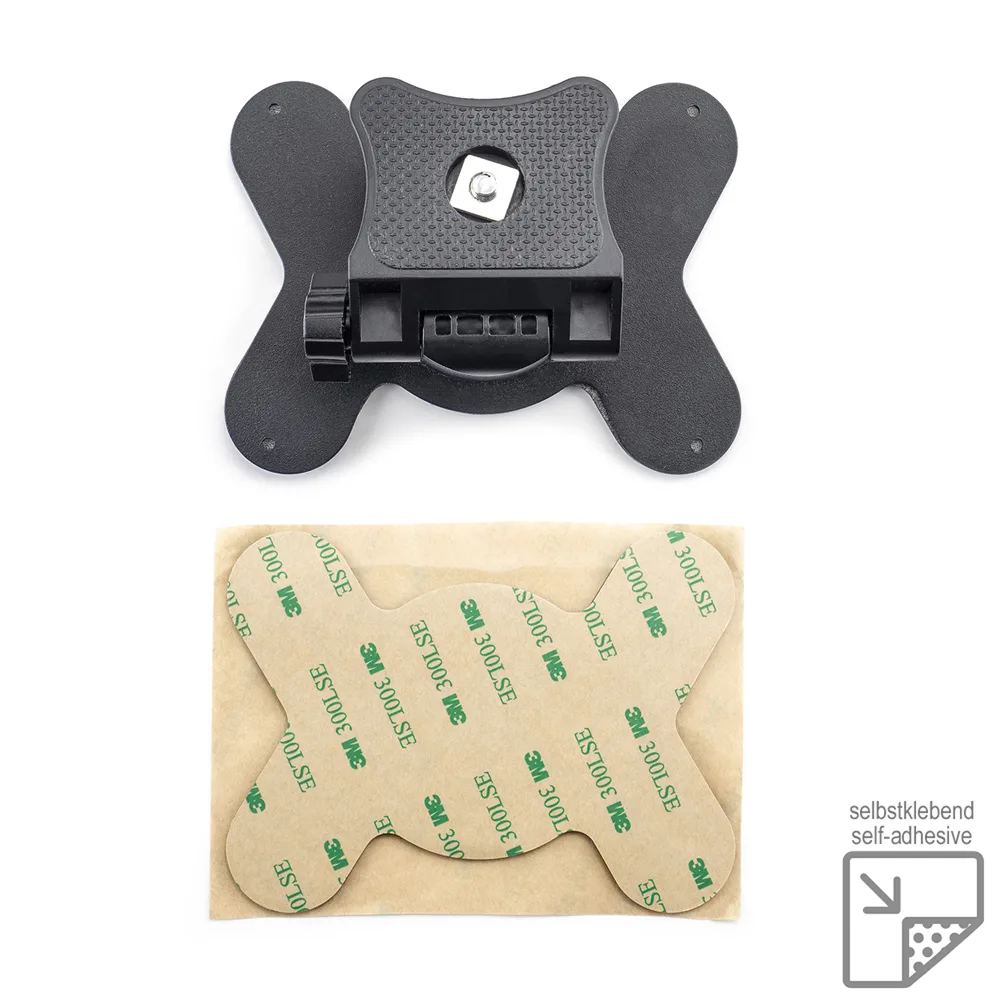

| Self-adhesive mounting base included | |
| Operating voltage 9-32 Volt DC | |
| Power consumption (on) 250mA@12VDC | |
| Quiescent current consumption (ignition on) 180mA@12VDC | |
| Operating temperature -20° to 70°C | |
| Storage temperature -30° to 80°C | |
| Dimensions 180 x 115 x 20mm | |
| Weight 304g | |
| Monitors are subject to ISO 9241-307, pixel error class II | |
| Protection class IP51 | |
| RED | Ignition 12-24 Volt DC (no continuous plus) |
|---|---|
| BLACK | Ground |
| 7″ (17.8cm) TFT monitor | |
| Adhesive base mount | |
| Connection cable | |
