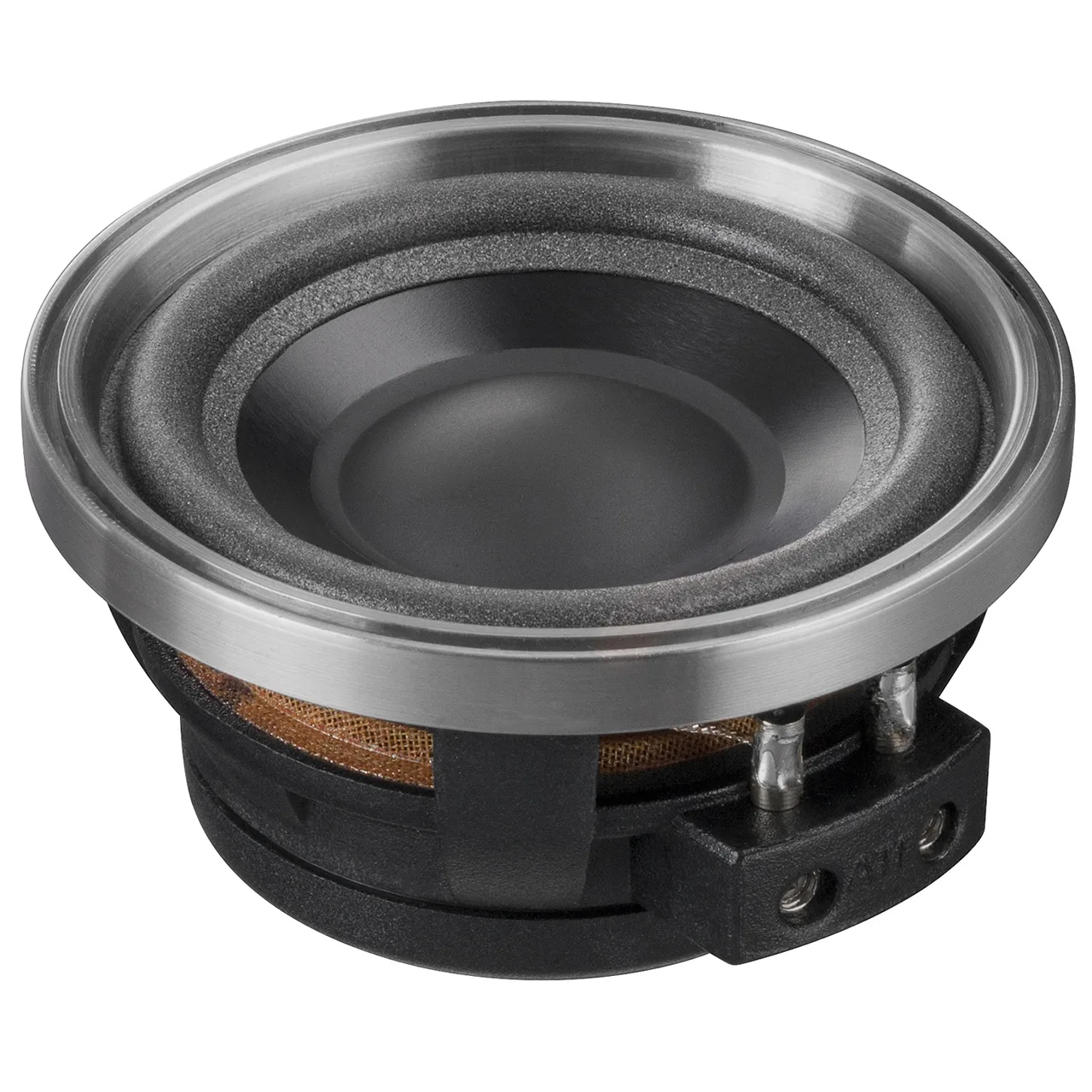

Erinomaisen äänenlaadun omaava 50 mm / 2″ High-End keskiäänikaiutin Braxilta.
Ominaisuudet:
– Erinomainen äänenlaatu
– Avoin runkorakenne

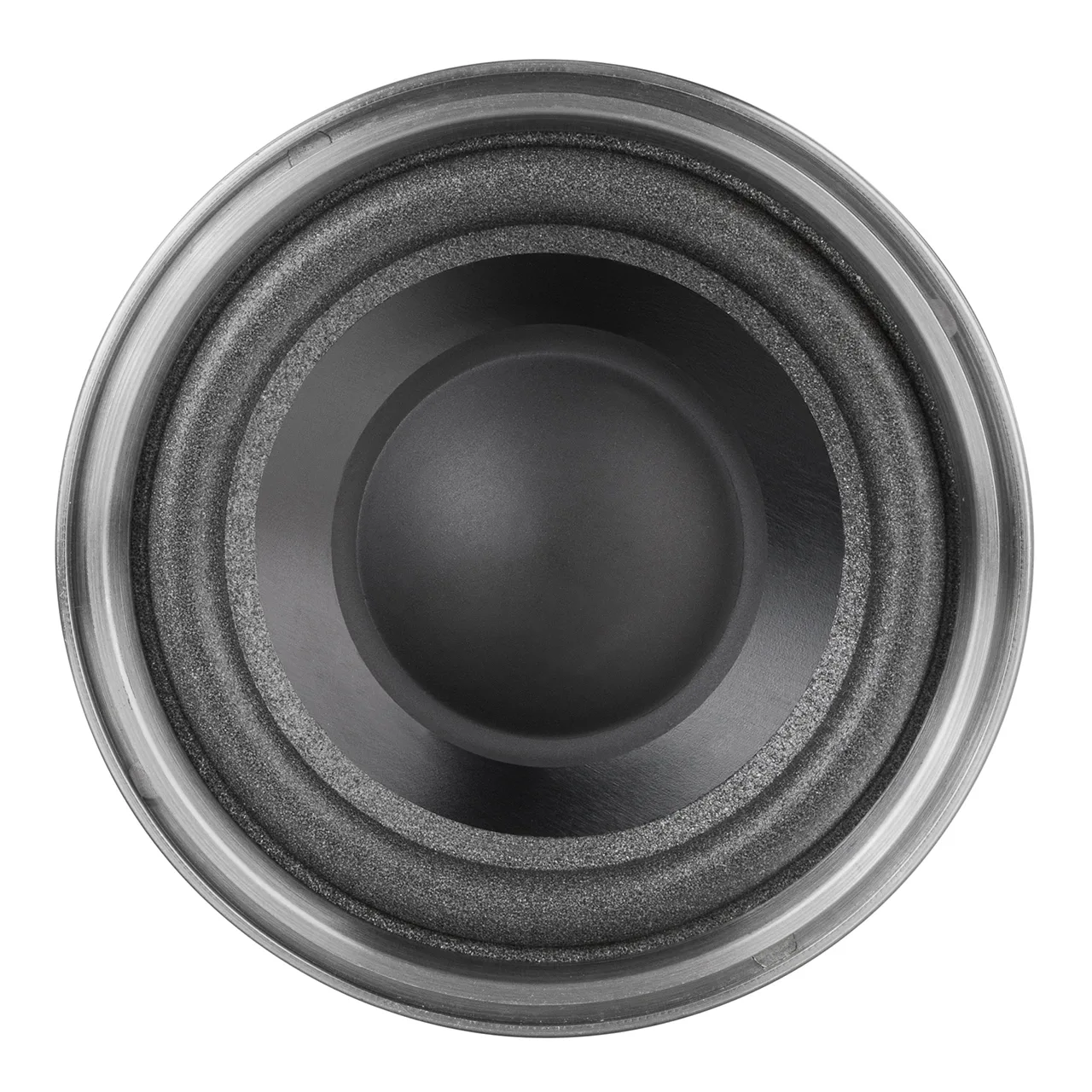

– Kevyt alumiinikartio takaa avoimen ja selkeän äänen

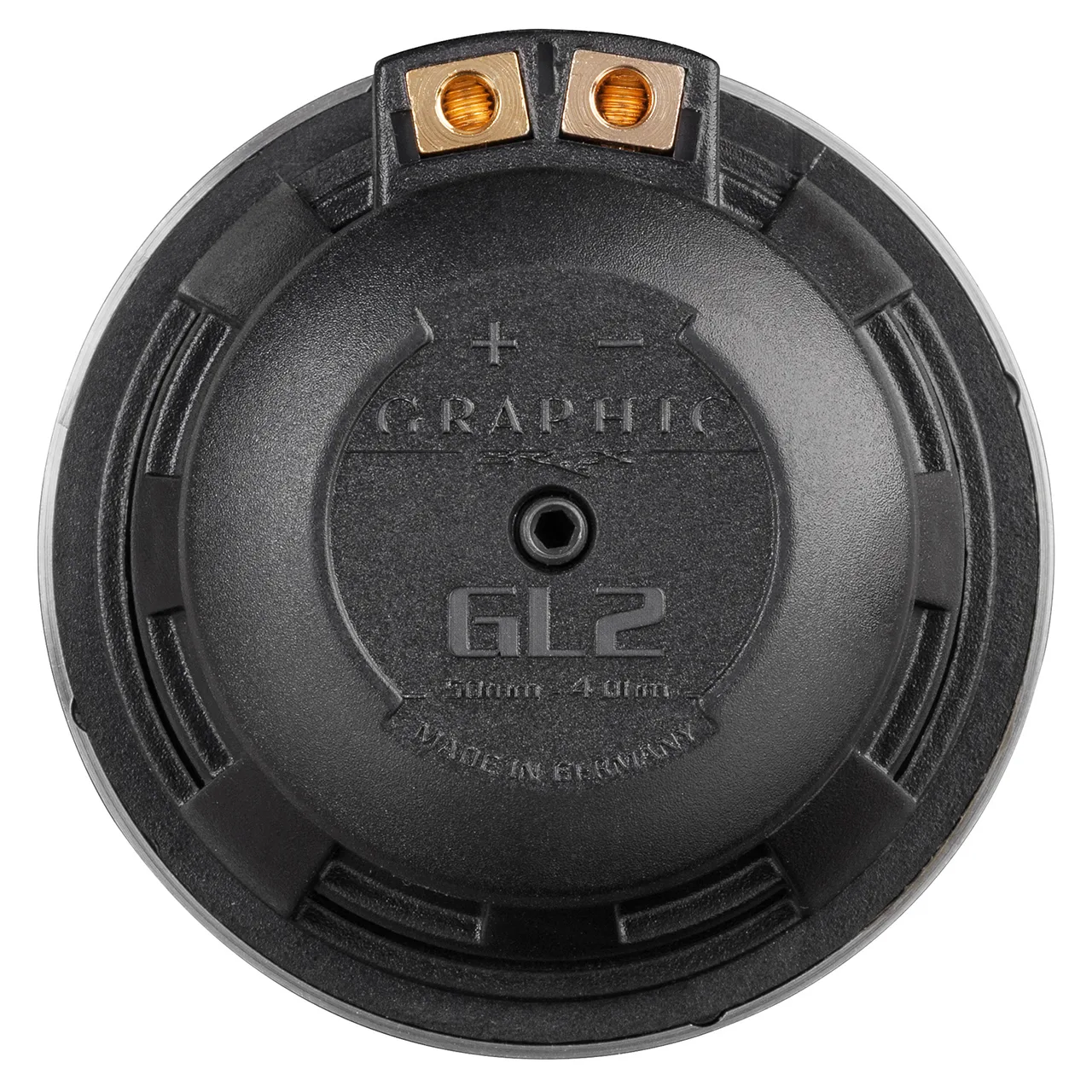

– Kullatut liittimet
– Vain 26.8 mm asennussyvyys

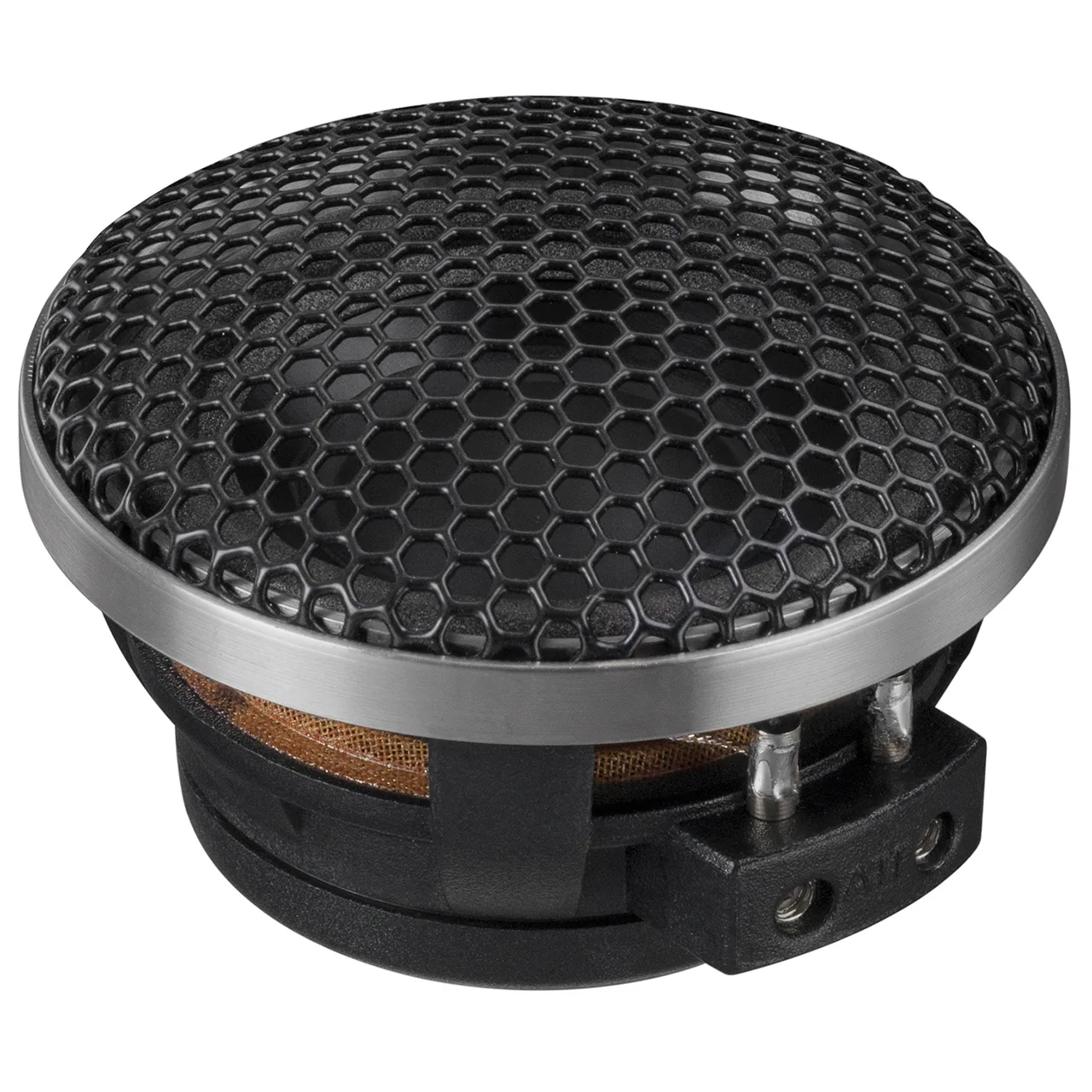

– Kaiuttimien suojaritilät sisältyvät pakkaukseen
– Parihinta
| Power RMS / max. | P 80 / 120 Watts |
|---|
(highpass 400 Hz at 24 dB/Oct.)
| Impedance | Z 4 Ω |
|---|---|
| DC resistance | Re 3.1 Ω |
| Frequency response | 400 Hz - 20.000 Hz |
| Resonance frequency | Fs 165 Hz |
| Mechanical Q factor | Qms 8.90 |
| Electrical Q factor | Qes 0.55 |
| Total Q factor | Qts 0.52 |
| Compliance | Cms 720 μm/N |
| Equivalent air volume | Vas 0.24 L |
| Force factor | B*I 2.6 Tm |
| Efficiency 1 W / 1 m | SPL 84 dB |
| Cone area | Sd 15 cm² |
| Moving mass | Mms 1.6 g |
| Cone material | Aluminum cone |
| Mechanical resistance | Rms 0.13 kg/s |
| Voice coil diameter | ø 19 mm / 0,75″ |
| Voice coil winding height | 5 mm / 0.2″ |
| Max. linear excursion | Xmax +/- 1.0 mm |
| Outer diameter | ø 60 mm / 2.36″ |
| Installation diameter | ø 53 mm / 2.1″ |
| Installation depth | 26.8 mm / 1.1″ |
Recommended enclosure volumes
Sealed box with minimum 250 ml net volume
| Net volumes | Recommended DSP / amplifier settings |
|---|---|
| 0.25 liter (System resonance: 200 Hz) | Crossover frequency: 600 Hz |
Min. filter slope: 12 dB/Oct.
| 0.5 liter (System resonance: 155 Hz) | Crossover frequency: 450 Hz |
|---|
Min. filter slope: 12 dB/Oct.
| 0.75 liter (System resonance: 140 Hz) | Crossover frequency: 300 Hz |
|---|
