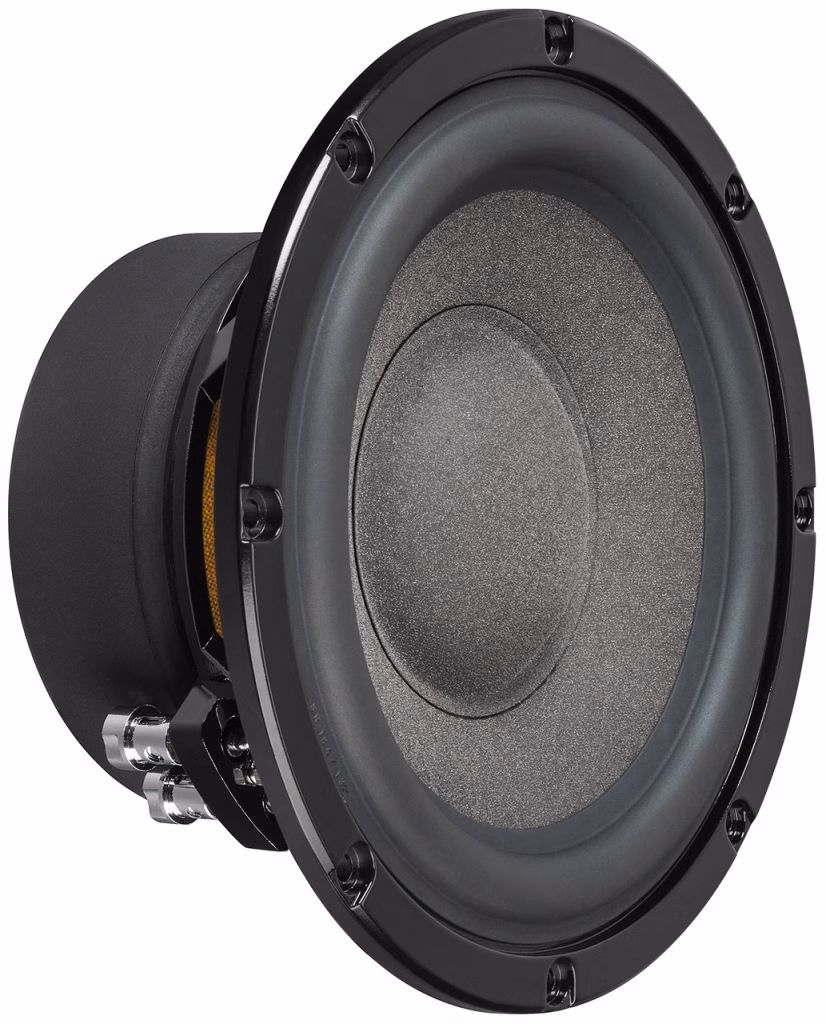

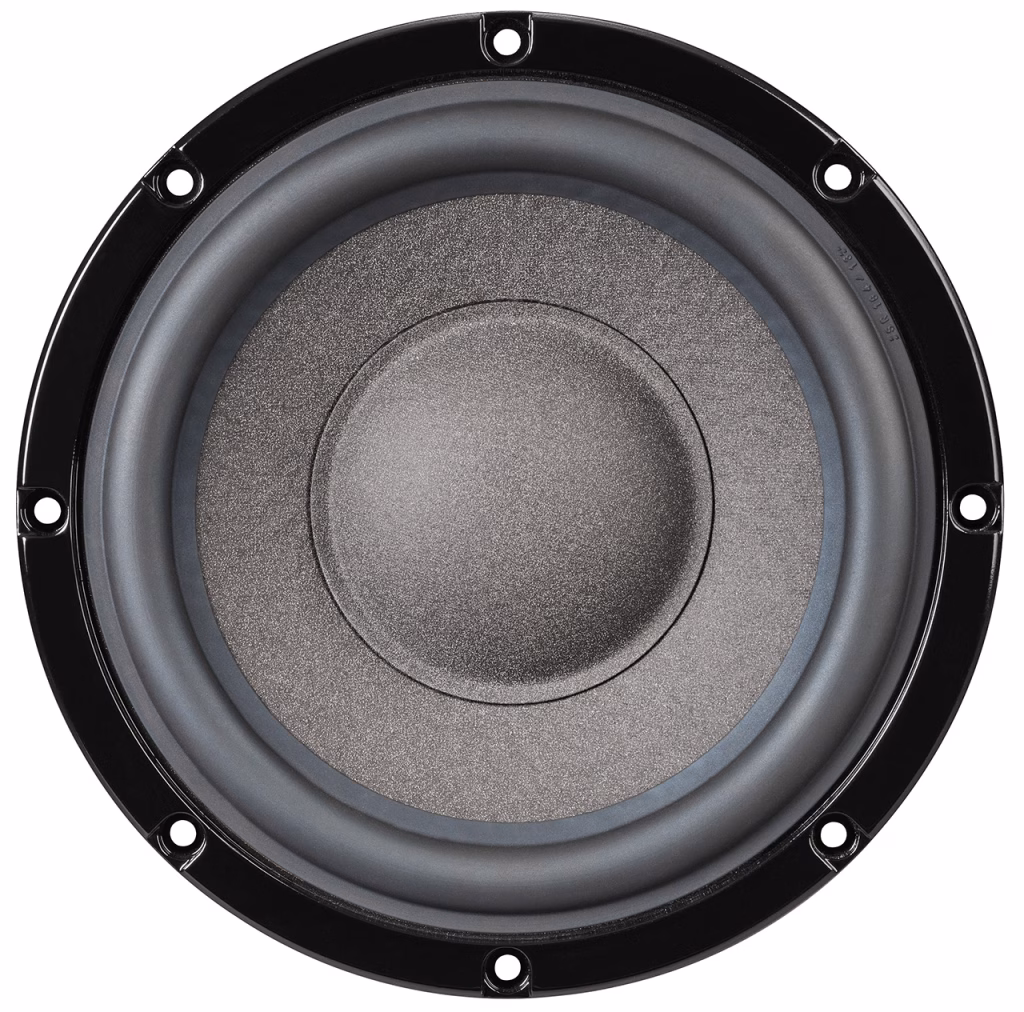

BRAX MATRIX ML8 SUB

Valmistaja: HELIX

• 8″ High-End subwoofer • 2 x 2 Ohm • 800W

Lue lisää

1120,00 € 840,00 €

alv. 25,5%

Tilattavissa
Arv. toimitusaika 1-4 viikkoa

Legendaarinen BRAX MATRIX -sarja on ollut jo monen vuoden ajan synonyymi huippuluokan äänenlaadulle. Sarja laajenee nyt 8″ ML8 SUB -elementillä. Tämä subwoofer on aivan yhtä tinkimättömästi kehitetty ja valmistettu kuin kaikki BRAX-kaiuttimet ja se tavoittelee akustista täydellisyyttä!

ML8 SUB on poikkeuksellisen jäykkä käsin valmistettu paperikartio ainutlaatuisella ″MicroSphere″-pinnoitteella, joka koostuu polymeerikerrokseen upotetuista keraamisista mikroskooppisista ontoista palloista. Tämä ratkaisu tarjoaa parhaan mahdollisen impulssivasteen.

ML8 SUB toimitetaan arvokkaassa puulaatikossa, jossa on oma sarjanumeronsa, joka kirjataan huoltotietokantaan

Technical data

Power RMS / max.400 / 800 Watt
ImpedanceZ 2 x 2 Ω
DC resistanceRe 2 x 1.9 Ω
Resonance frequencyFs 32 Hz
Mechanical Q factorQms 9.63
Electrical Q factorQes 0.60
Total Q factorQts 0.56
ComplianceCms 323 µm/N
Equivalent air volumeVas 22 L
Force factorB*I 10.3 Tm
Efficiency 1 W / 1 mSPL 85 dB
Cone areaSd 219 cm²
Moving massMms 83 g
Cone materialPaper cone with “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer
Mechanical resistanceRms 1.67 kg/s
Voice coil diameterø 50 mm / 2.0″
Voice coil winding height26.4 mm / 1.0″
Max. linear excursionXmax +/- 9,2 mm
Outer diameterø 222 mm / 8.7″
Installation diameterø 191 mm / 7.5″
Installation depth95.6 mm / 3.8″

Recommended enclosure volumes

Sealed box :

Optimal enclosure size 17L

Minimal enclosure size 10L

Our specifications for the net volume of sealed enclosures always refer to unfilled cabinets without any damping material inside. The net volumes can be reduced if the cabinet will be filled completely (not stuffed) with suitable materials. The following materials can be used for this purpose:

polyester wadding achieves a volume reduction of up to 5%

mineral wool or rock wool achieves a volume reduction of up to 10%

sheep wool achieves a volume reduction of up to 20% come

Note:

Damping of vented enclosure (as long as they are solely used in the frequency range up to 150 Hz) is counterproductive because the damping material generally reduces the effectiveness of the bassreflex port.

Scope of delivery

  • 1 x High-End Subwoofer BRAX MATRIX ML8 SUB
  • 1 x Certificate
  • 1 x Data sheet
