Component Speaker Kit 3-Way 6.5″ – 130 WRMS – 4 Ohm – Woofer+Midwoofer+Tweeter

3-Way 6.5″ Speaker Kit – 130 WRMS – 4 Ohm – Woofer+Midwoofer+Tweeter

3-way speaker kit with 165 mm woofer designed for OEM car audio system upgrades, with a balance of sound quality, efficiency and ease of installation.

Compatible with original car radios (18-25 WRMS) but best amplified with external amplifiers between 60 and 200 WRMS per channel, representing a versatile solution for quality-oriented daily-use systems.



Ideal for:

• Upgrading stock systems
• 3-way front stage
• Port and/or marine installations on boats (even in humid conditions)
• Systems without DSP with small amplifier and passive crossover included

Sound quality:

The system offers linear and balanced reproduction, covering the entire audio spectrum:

• Bass present and controlled
• Defined and natural mids
• Soft and detailed high frequencies

Frequency response 45 Hz – 21,000 Hz (±3 dB) allows for complete listening even without a subwoofer or possibly a small sub-seat as an upgrade to emphasize bass from 30 to 60 Hz.



KIT COMPONENTS:

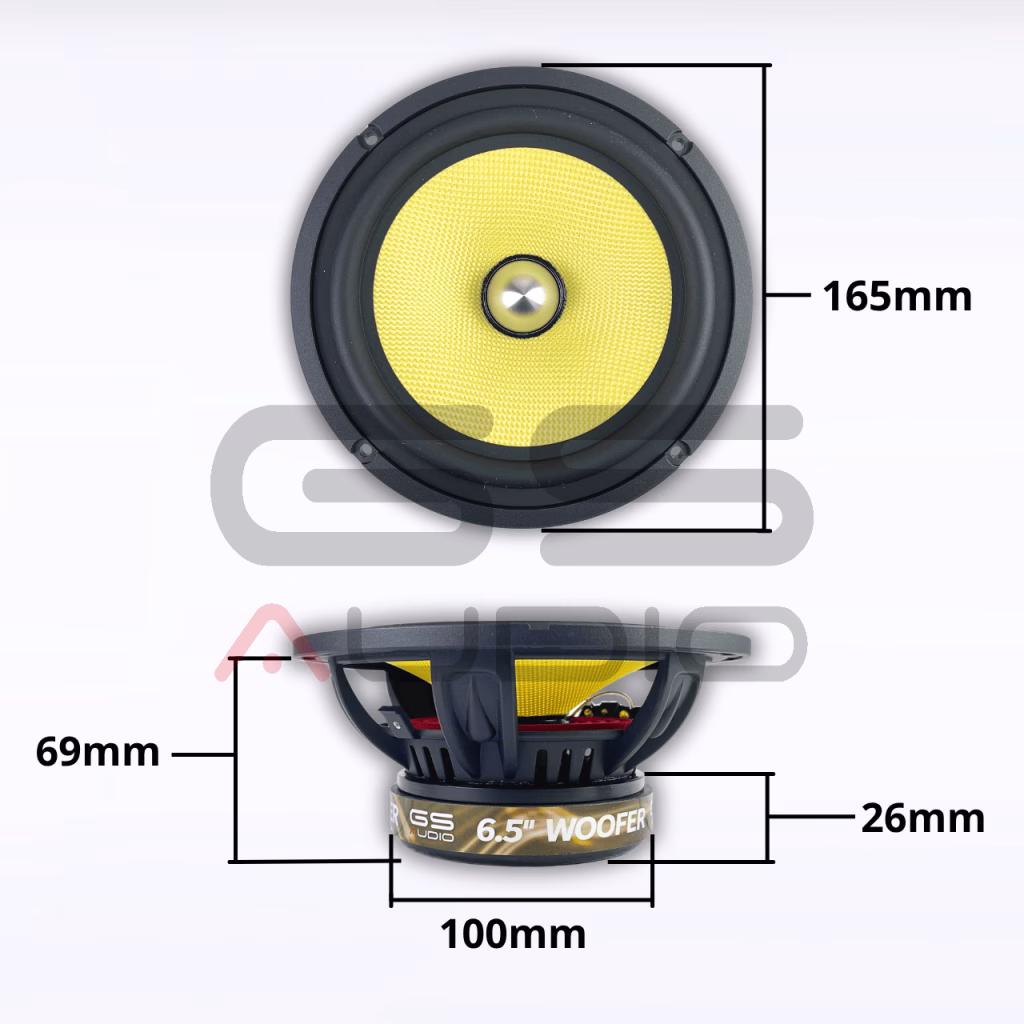

WOOFER 165mm:Optimized for door installation, with materials designed for durability and consistent performance.

Features:

• Diameter: 165mm (6.5″)
• Impedance: 4 ohms
• Kevlar cone
• Die-cast aluminum basket
• Waterproof rubber suspension
• 30 mm coil

Advantages:

• Excellent sensitivity (also ideal with OEM radios)
• Good dynamic response
• Resistant to moisture and prolonged use



medium 87mm:Optimized for door installation, with materials designed for durability and consistent tone.

Features:

• Diameter: 87mm (3.5″)
• Impedance: 4 ohms
• Kevlar cone
• Die-cast aluminum basket
• Waterproof rubber suspension
• 20 mm coil

Advantages:

• Excellent sensitivity (also ideal with OEM radios)
• Good dynamic response
• Resistant to moisture and prolonged use

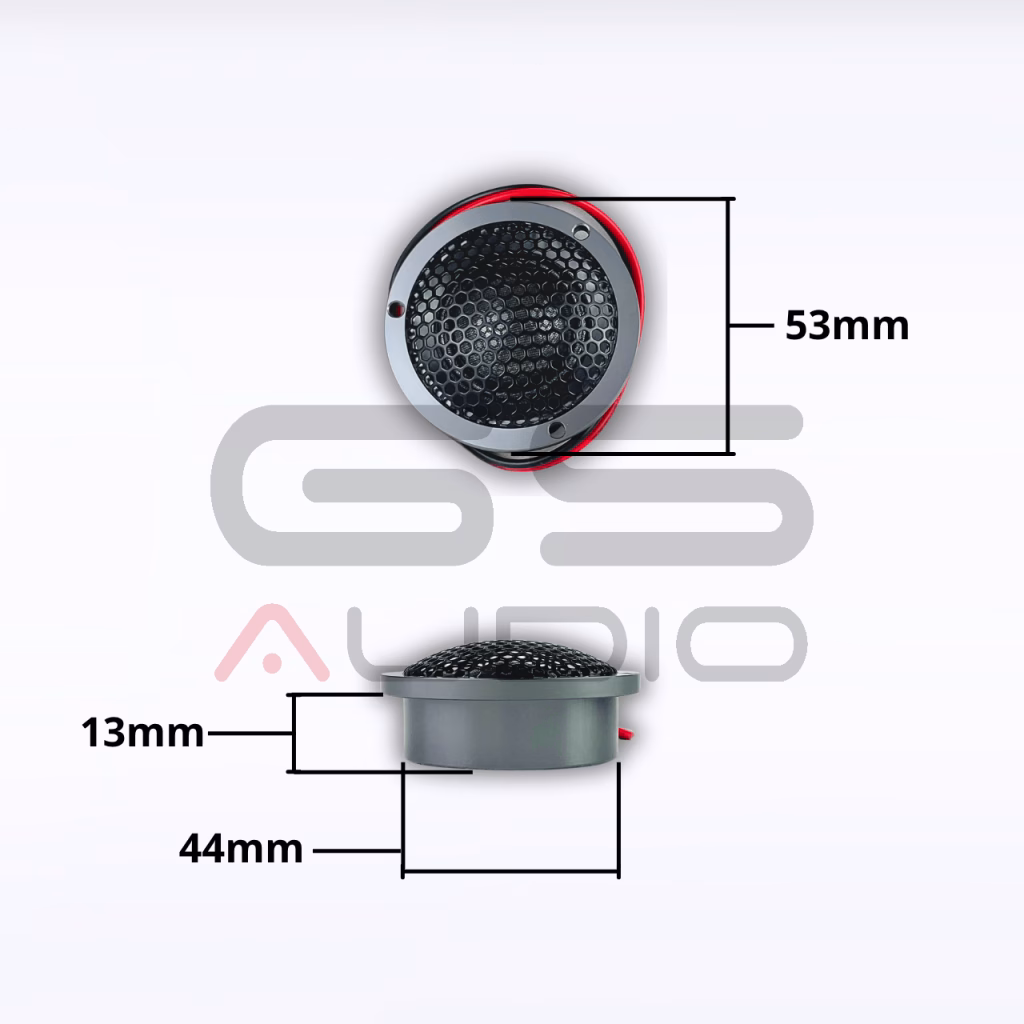

27mm SILK DOME TWEETERS.: designed for natural, non-fatiguing performance.

Features:

• 27mm silk dome and aluminum stand
• Neodymium magnet
• Impedance: 4 ohms

Advantages:

• Precise and smooth high frequencies
• Excellent vocal performance and zero vibration due to aluminum stand
• Easy integration with woofer at a lower freqience than other kits

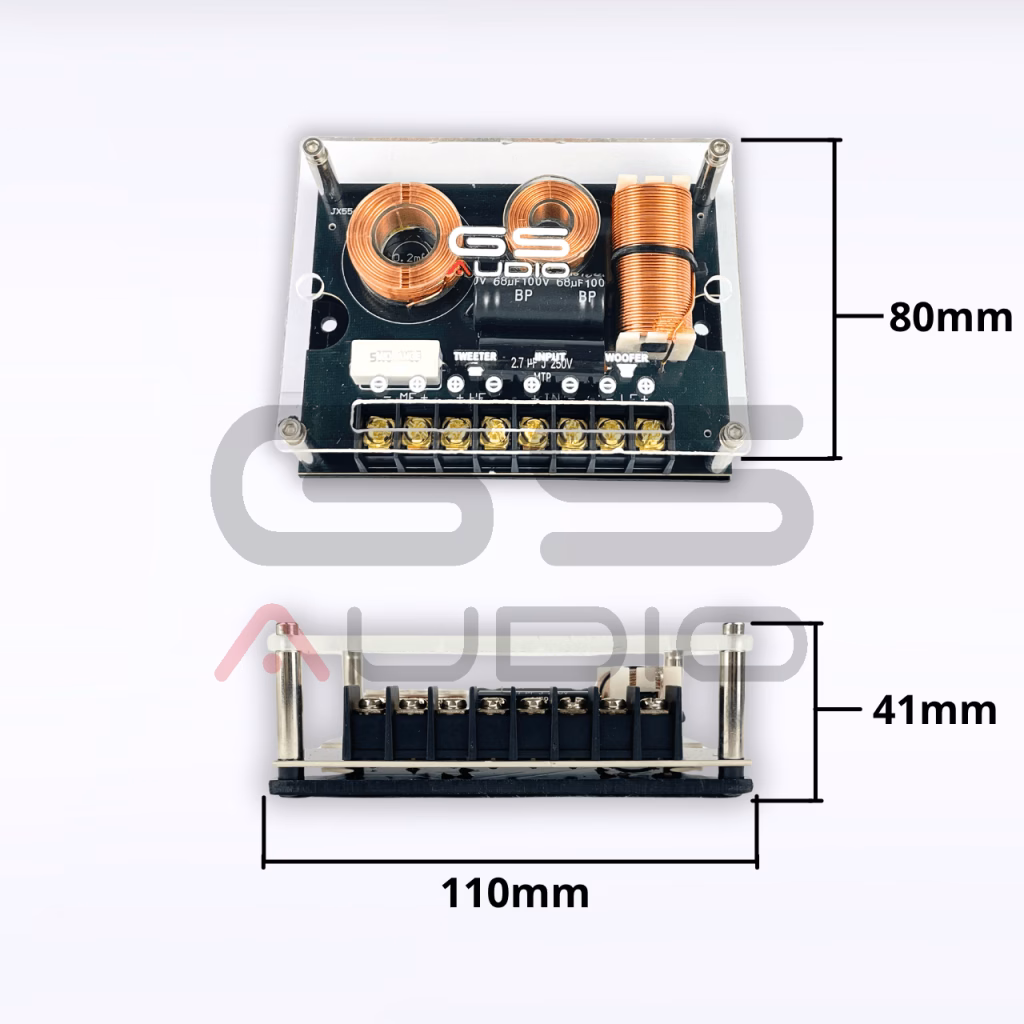

PASSIVE CROSSOVER: Included for easy and effective system management.

Features:

• 6 dB/oct cutoff on the woofer
• Bandpass cutoff on the midrange at 6 + 12 dB/oct
• 12 dB/oct cutoff on the tweeter
• Tweeter attenuation cell
• Box with plexiglass and exposed components
• Screw connections

Advantages:

• Quick installation
• Mechanical protection of components and internal aesthetics
• Correct balance without DSP



Specifications:

• Configuration: 3-way
• Impedance: 4 Ohms
• Rated power: 130 WRMS
• Recommended amplifier power: up to 200 WRMS / channel
• OEM compatibility: yes (18-25 WRMS)
• Frequency response: 45 Hz – 21,000 Hz (±3 dB)
• Sensitivity: ~92 dB

Installation: Kit designed for simple and versatile installations. We recommend :soundproofing the ports for better performance, orient the tweeters toward the listening point, and use with an external amplifier.

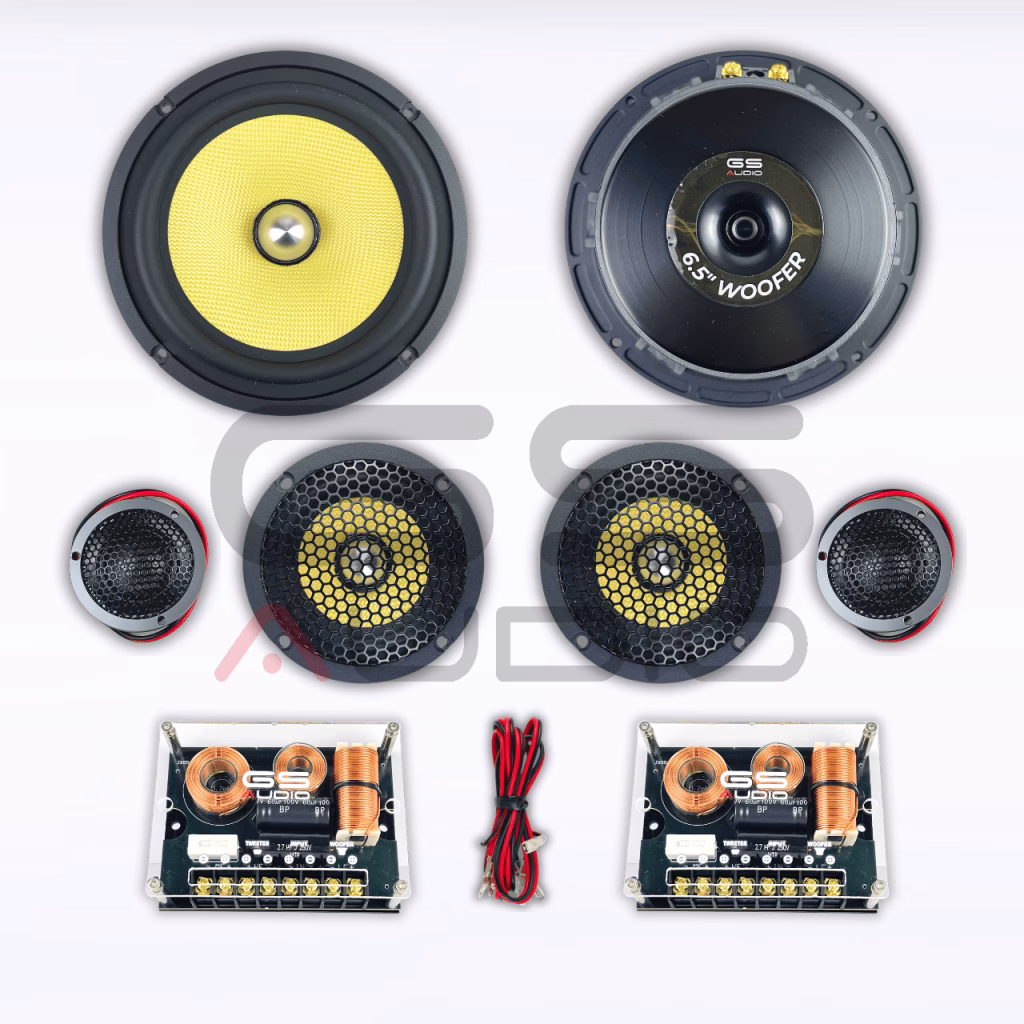

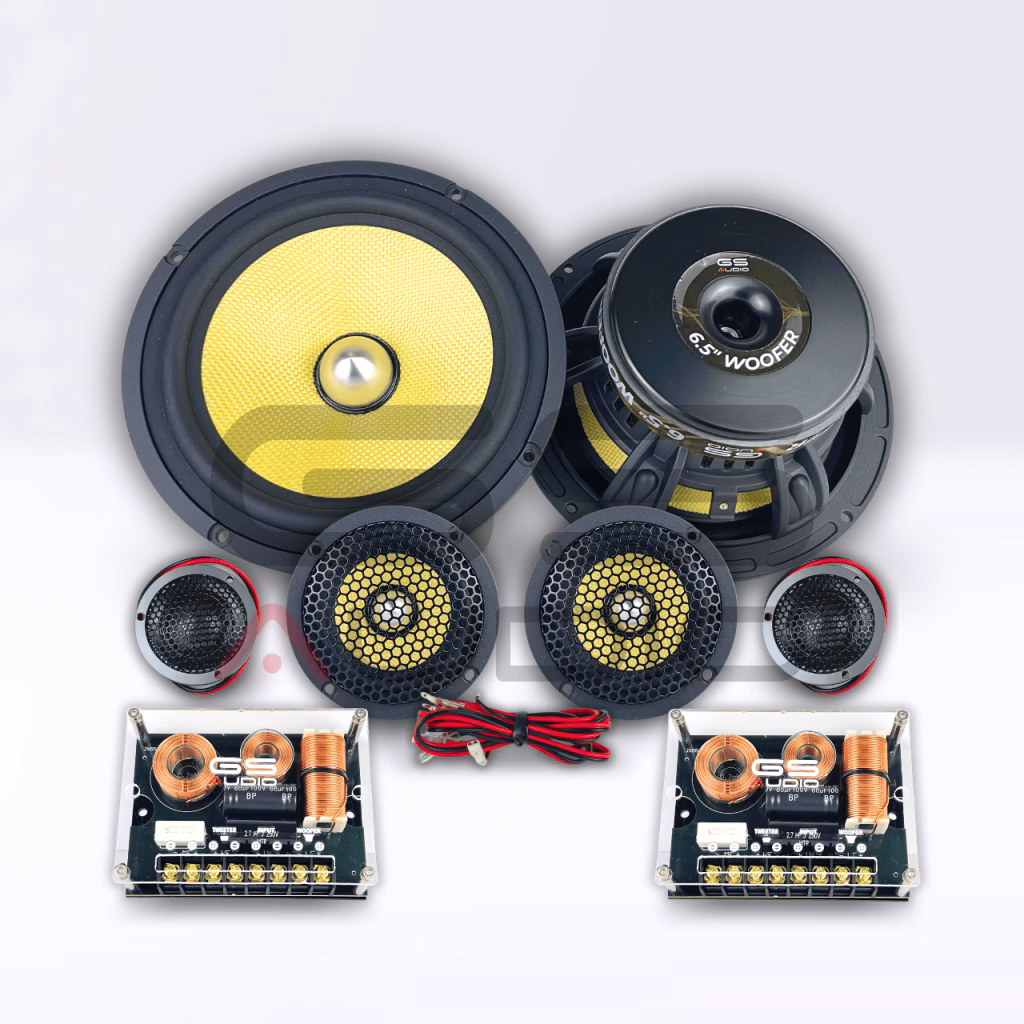

Included in the package: 2 woofers 165mm, 2 midrange, 2 tweeters 27mm, 2 passive crossovers
