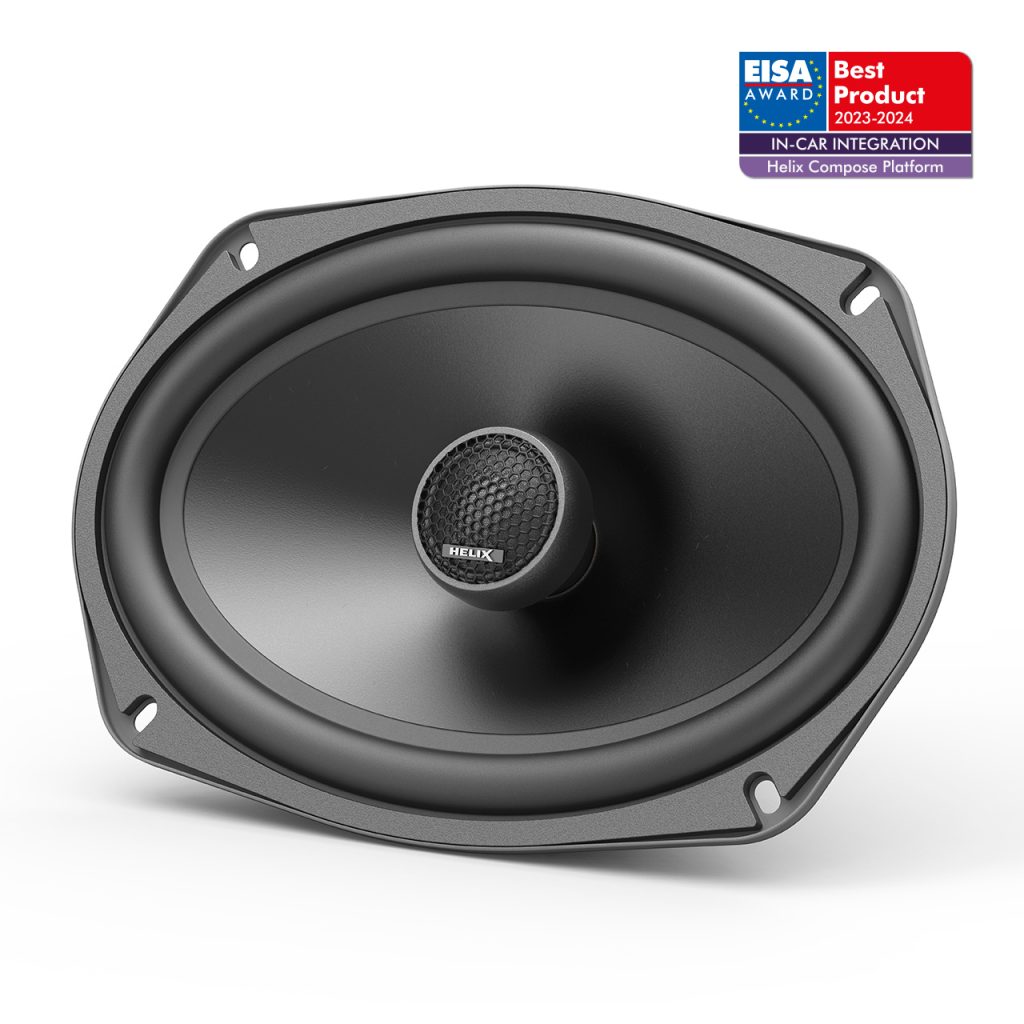

Helix Compose Basic 6 x 9” – 2-tie koaksiaalikaiutin.
Helix Basic on Compose -sarjan edullisin ja loistavalla hinta- / laatusuhteella varustettu mallisto!
Muiden Compose -mallien tapaan myös Basic on kehitetty autossa paikallaan, jonka ansiosta niiden optimointi on tehty nimenomaan autokäyttöön
| Power handling RMS / Max. | P 100 / 150 Watts |
|---|---|
| Frequency response | 50 Hz - 22,000 Hz |
| Impedance | Z 3 Ω |
| Sensitivity | SPL 94 dB @ 2.83V / 1m |
90 dB @ 1W / 1m
| Outer diameter | ø 235.0 x 164.0 mm / 9.25 x 6.46” |
|---|---|
| Installation diameter | ø 218.4 x 150.6 mm / 8.60 x 5.93” |
| Installation depth | 74.8 mm / 2.95” |
Woofer
| Impedance | Z 3 Ω |
|---|---|
| DC resistance | Re 3.1 Ω |
| Resonance frequency | Fs 56 Hz |
| Mechanical Q factor | Qms 3.73 |
| Electrical Q factor | Qes 0.63 |
| Total Q factor | Qts 0.54 |
| Compliance | Cms 420 μm/N |
| Equivalent air volume | Vas 24.7 L |
| Force factor | B*l 5.7 Tm |
| Cone area | Sd 205 cm2 |
| Moving mass | Mms 19.1 g |
| Mechanical resistance | Rms 1.81 kg/s |
| Voice coil diameter | ø 25 mm |
Voice coil winding height
| 9.0 mm | |
| Max. linear excursion | Xmax +/- 2.0 mm |
Tweeter
| Voice coil diameter | ø 25 mm |
|---|
Features
| Tweeter | Silk dome and neodymium magnet |
|---|
Midbass
Injected polypropylene cone
| Crossover | Integrated, 6 dB highpass |
|---|
Scope of delivery
- 2 x CB C690.2-S3
- 2 x Grille
- 1 x Mounting material
