Helix Compose i3 diskantti, jossa alumiininen kartio.
Compose -sarjan kaiuttimien ohmiluku on optimoitu Helix / Match DSP -prosessoreita ajatellen.
Helix Compose edustaa Helixin parasta osaamista, tarkkaa valmistusprosessia ja huipputason äänenlaatua.
Yli 30 vuoden kokemuksen ansiosta Helix Compose asettaa uudet standardit autokaiutin markkinoille.
| Impedance | Z 4 Ω |
|---|---|
| DC resistance | Re 3.2 Ω |
| Frequency response | 2,000 Hz - 25,000 Hz |
| Resonance frequency | Fs 1800 Hz |
| Sensitivity | SPL 91 dB @ 2.83V / 1m |
88 dB @ 1W / 1m
| Voice coil diameter | Ø 20 mm |
|---|---|
| Cone material | Aluminum |
| Outer diameter | 32 mm / 1.26″ |
| Installation diameter | 28 mm / 1.10″ |
| Installation depth | 9.8 mm / 0.39″ |
Recommended crossover frequencies for the highpass
| Slope | Minimum crossover frequency |
|---|---|
| 6 dB/Octave | 5,000 Hz |
| 12 dB/Octave | 3,500 Hz |
| 24 dB/Octave | 3,000 Hz |
Compatibility
FlexMount20
WireKits

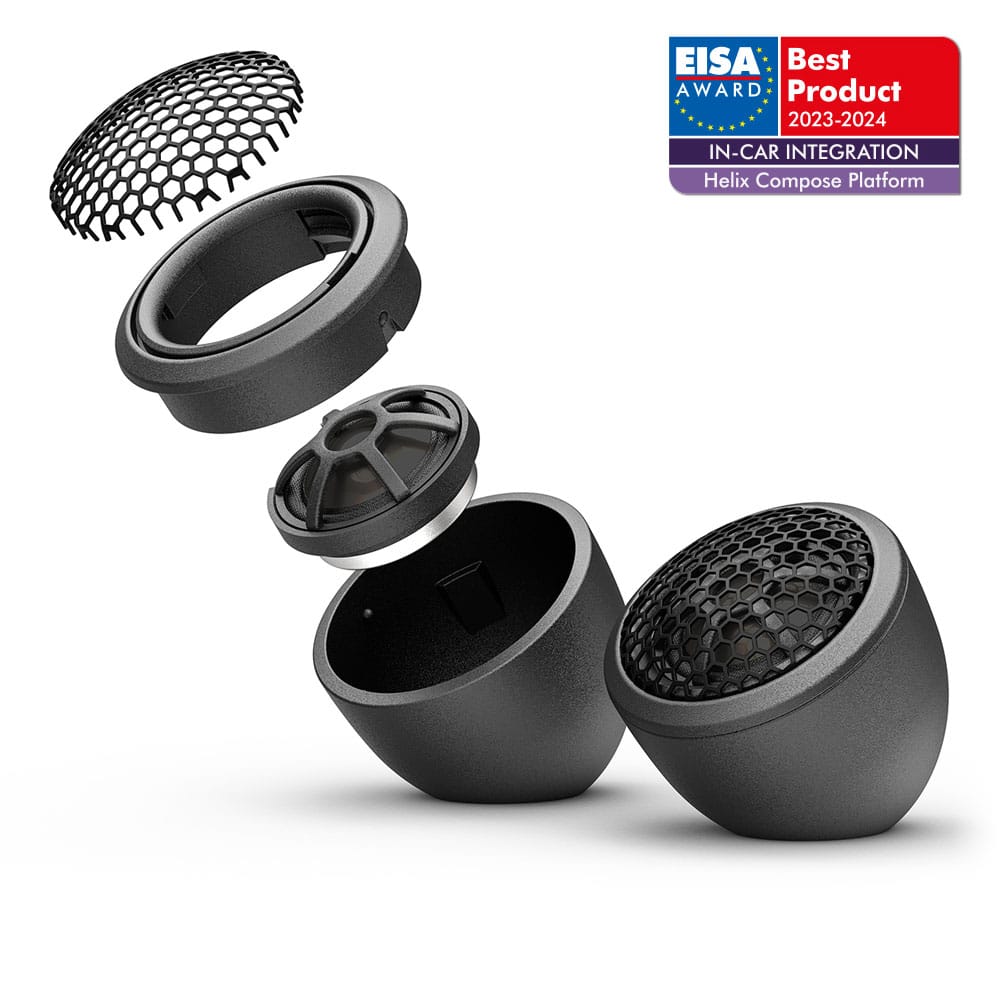

Scope of delivery
- 2 x Ci3 T20FM-AL MK2
- 2 x Tweeter flush mount
- 2 x Tweeter pod
- 2 x Mounting material
