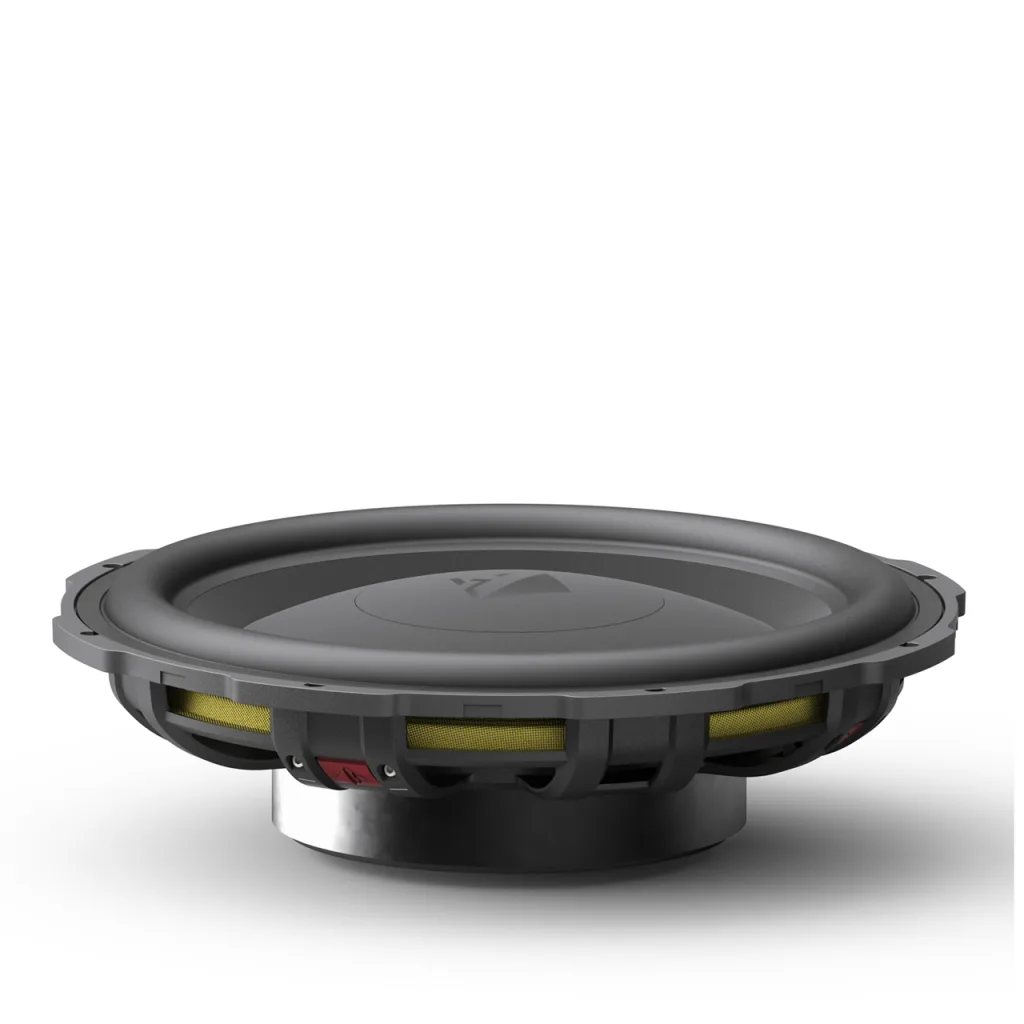

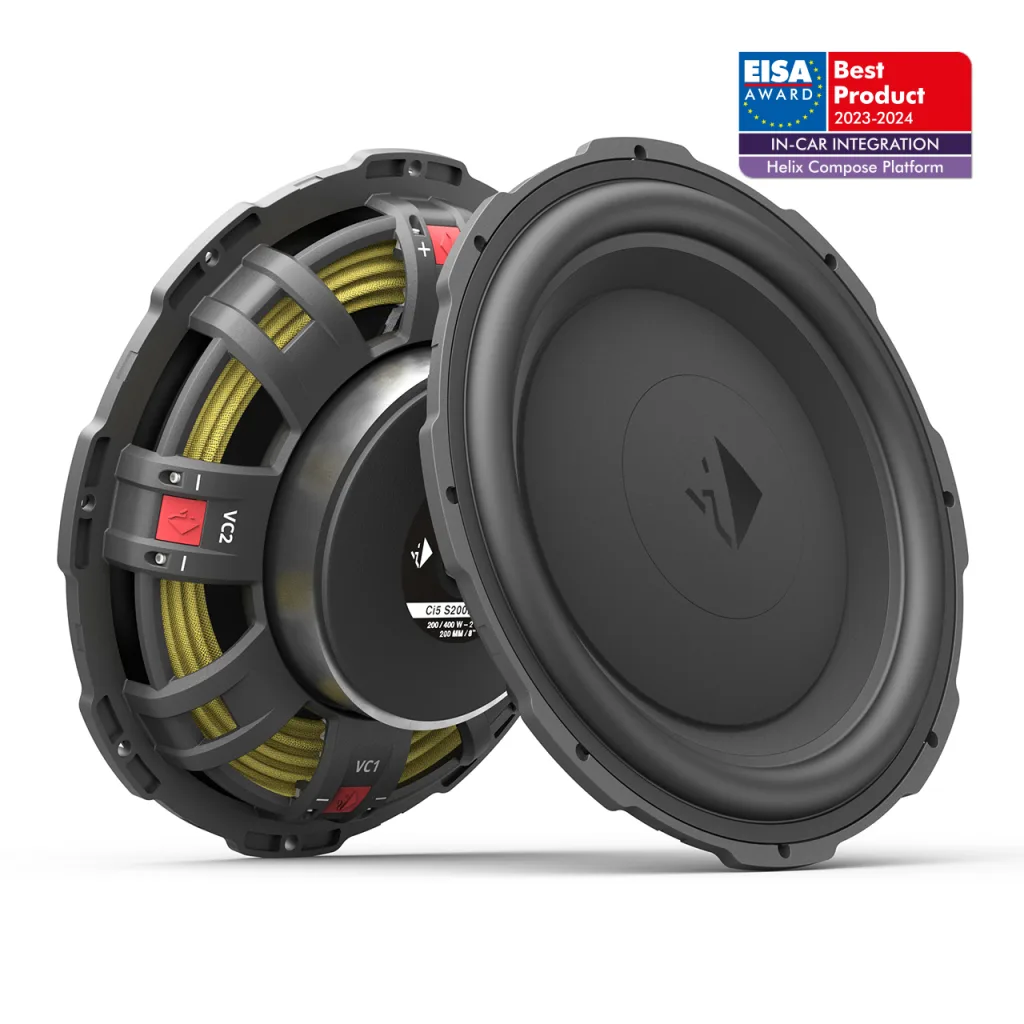

HELIX Ci5 S200FM on 8″ hybridi woofer ( midbasso / subwoofer ), jossa on äärimmäisen matala asennussyvyys: 47mm. Ci5 S200FM on saatavana 2 x2 sekä 1 x 2 Ohm-versiona
Yhteensopiva HELIX COMPOSE CFMK200-adapterien kanssa.
Tämä woofer soveltuu CFMK200 BMW.1S adapterin avulla myös BMW penkin alus bassoksi. 2 x 2 ohmin impedanssin ansiosta sopiva myös BMW Top Hifi ( Harman/Kardon, Logic7, HiFi System Professional DSP ym nimet ) järjestelmiin jotka kulkevat varustekoodeilla S688A/S677A/S752A.
| Power handling RMS / Max. | P |
|---|
200 / 400 Watts
| Impedance | Z 2 x 2 Ω |
|---|---|
| DC resistance | Re 3.6 Ω |
| Frequency response | 25 Hz - 500 Hz |
| Resonance frequency | Fs 55 Hz |
| Mechanical Q factor | Qms 8.31 |
| Electrical Q factor | Qes 0.88 |
| Total Q factor | Qts 0.80 |
| Compliance | Cms 256 µm/N |
| Equivalent air volume | Vas 13.5 L |
| Force factor | B*I 6.7 Tm |
| Sensitivity | SPL 90 dB @ 2.83 V / 1m |
87 dB @ 1W / 1m
| Cone area | Sd 194 cm² |
|---|---|
| Moving mass | Mms 32 g |
| Cone material | Injected polypropylene |
| Mechanical resistance | Rms 1.39 kg/s |
| Voice coil diameter | ø 38 mm |
| Voice coil winding height | 20 mm |
| Max. linear excursion | Xmax +/- 7.5 mm |
| Outer diameter | ø 195 mm / 7.68″ |
| Installation diameter | ø 173.5 mm / 6.83″ |

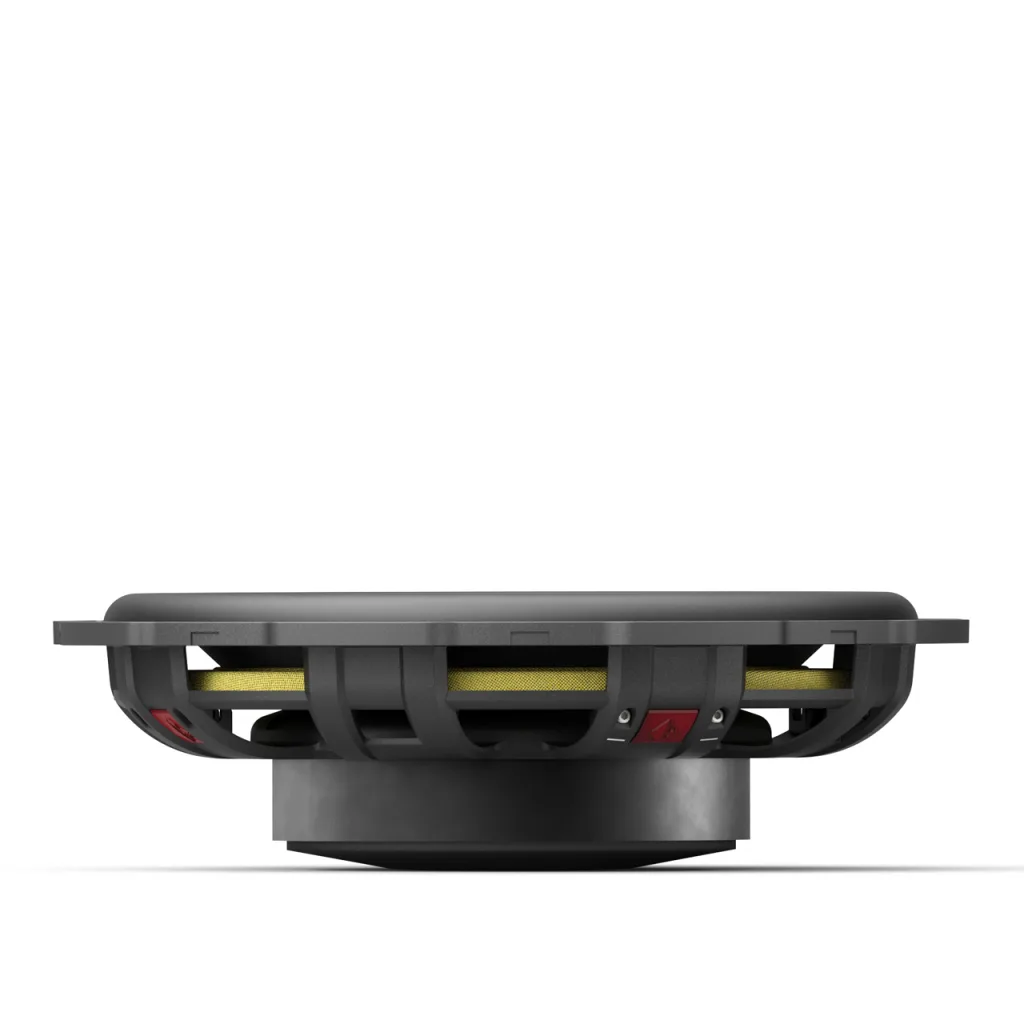

| Installation depth | 47.0 mm / 1.85″ |
| Features | FlexMount200 |
Compatibility
FlexMount200
Scope of delivery
- 2 x Ci5 S200FM-D2
- 2 x Mounting material
