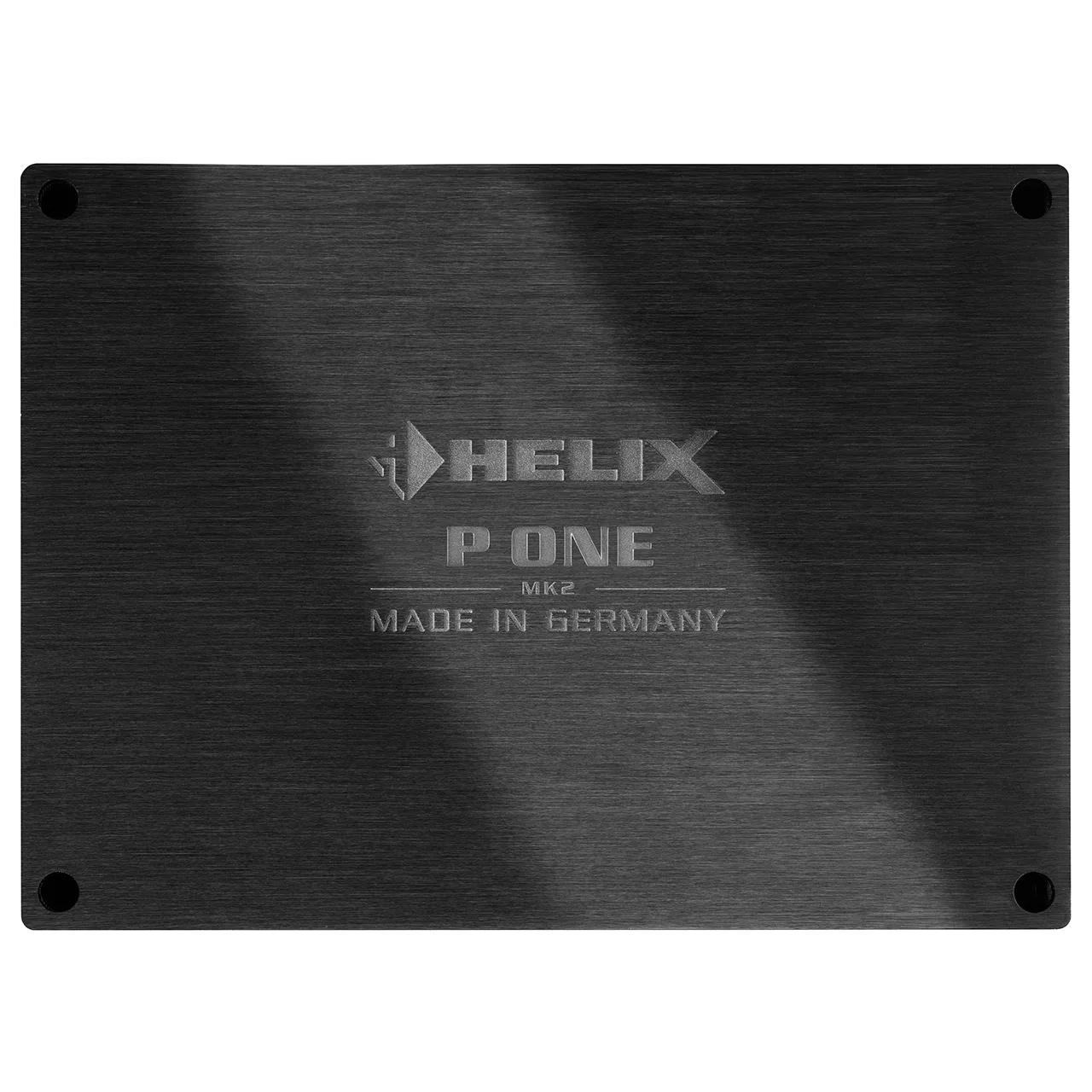

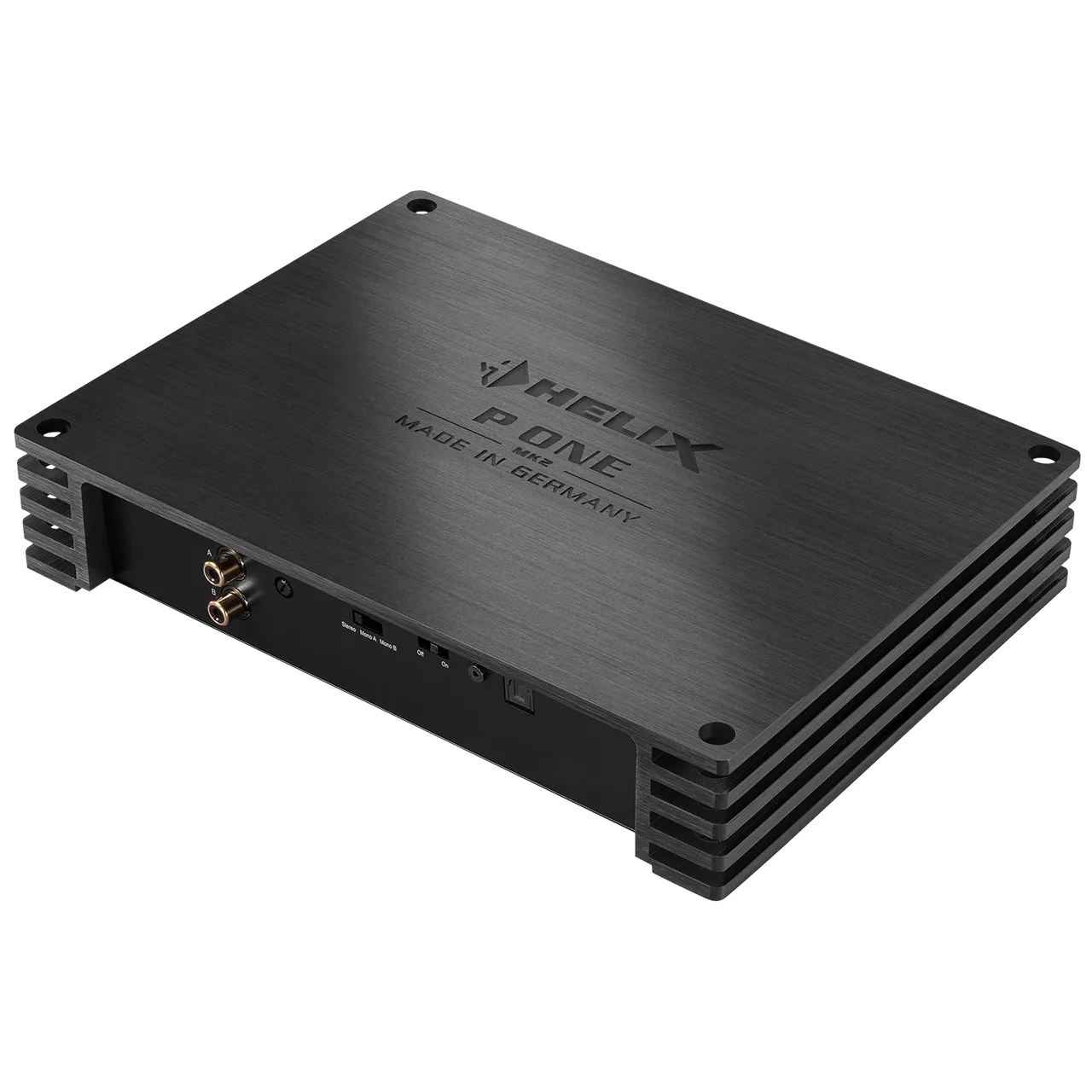

Uusi Helix P ONE MK2, tehokas ja pienikokoinen High End- kokoäänialueen monovahvistin. Todella pieni särö (0,01% THD) ja suuri 450 vaimennuskerroin. Hi-Res Audio luokitus pienellä signaali-kohinasuhteella mahdollistaa toiston jopa 40kHz saakka!
| Power RMS ≤ 1% THD+N |
|---|
- - @ 4 Ohms 1 x 500 Watts
- - @ 2 Ohms 1 x 880 Watts
- - @ 1 Ohm 1 x 1,500 Watts
- - bridged @ 4 Ohms -
- - bridged @ 2 Ohms -
| Max. output power per channel* | Up to 1.800 Watts RMS @ 1 Ohms |
|---|---|
| Amplifier technology | Class D |

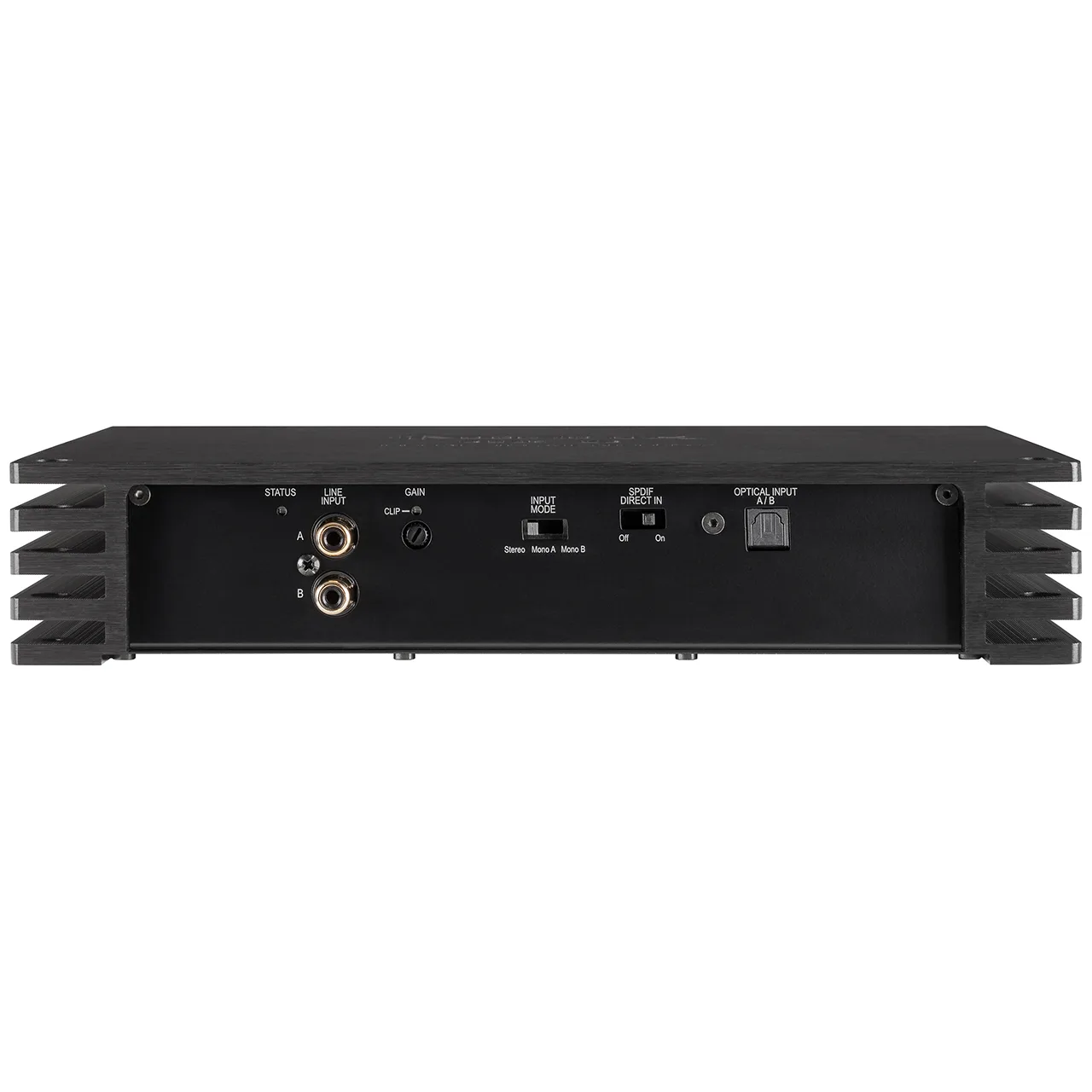

| Inputs | 2 x RCA / Cinch |
- 1 x Remote In
- 1 x Optical SPDIF (28 - 96 kHz)
| Input sensitivity | RCA / Cinch 0.5 - 8 Volts |
|---|---|
| Input impedance RCA / Cinch | 20 kOhms |
| Input impedance highlevel | - |

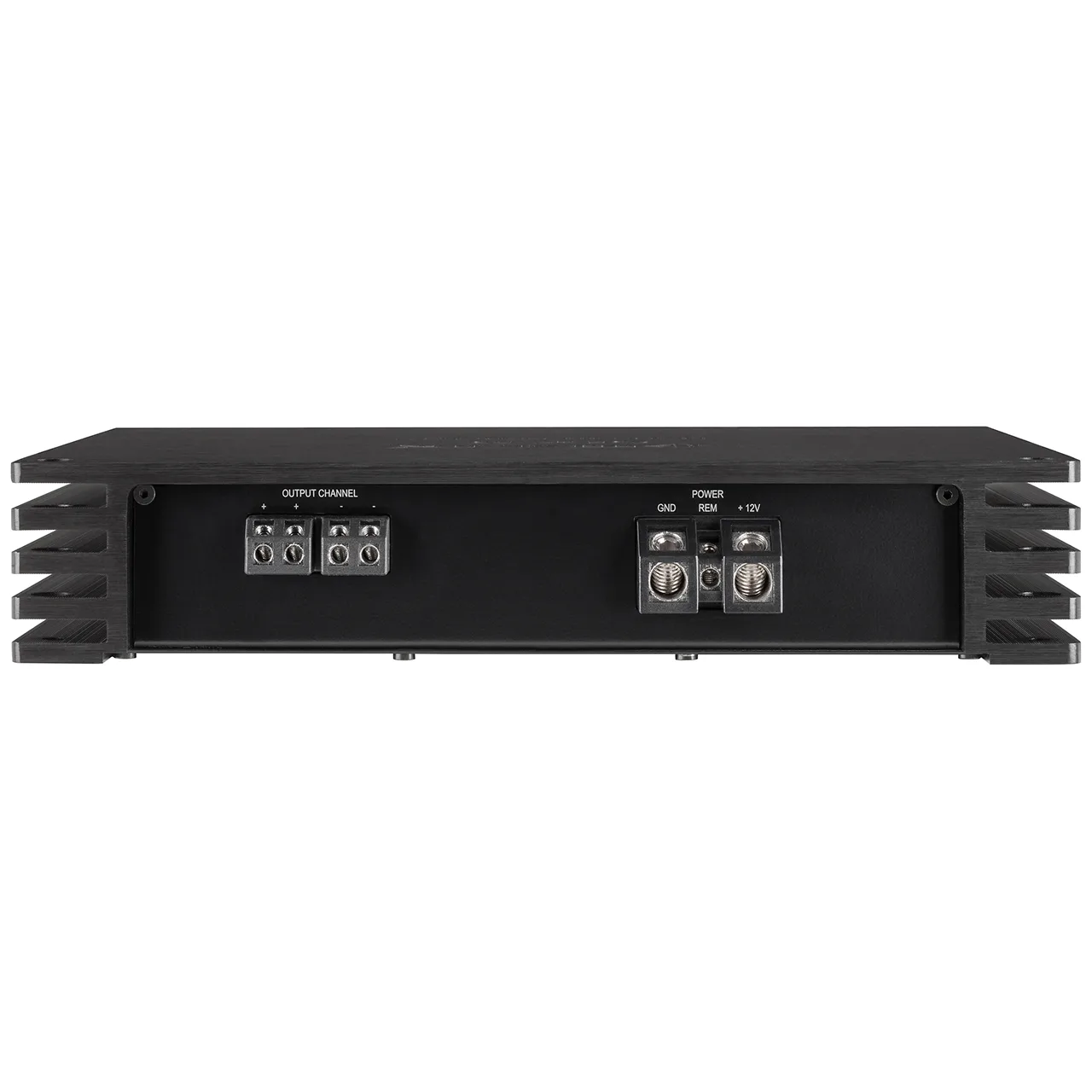

| Outputs | 1 x Speaker output |
| Output voltage RCA / Cinch | - |
| Signal converter for digital input | BurrBrown 32 Bit DA converter |
| Frequency response | 21 Hz - 40,000 Hz |
| Bass boost | - |
| Highpass | - |
| Lowpass | - |
| Bandpass | - |
| Subsonic | 21 Hz |
| Phase | - |
| Slope high- / lowpass | - |
| Slope subsonic / lowpass | Butterworth 48 dB/Oct. |
| Signal-to-noise ratio digital input | 110 dB (A-weighted) |
| Signal-to-noise ratio analog input | 110 dB (A-weighted) |
| Distortion (THD) | 0.01 % |
| Damping factor | 450 |
| Operating voltage | 10.5 - 17 Volts (max. 5 sec. down to 6 Volts) |
| Idle current | 1500 mA |
| Fuse | 4 x 30 A LP-Mini-fuse (APS) |
| Power rating | DC 12 V ⎓ 160 A max. |
| Additional features | Input mode switch, SPDIF Direct In switch, Start-Stop capability |
| Dimensions (H x W x D) | 50 x 260 x 190 mm / |
1.97 x 10.24 x 7.48”
Samanlaisia tuotteita

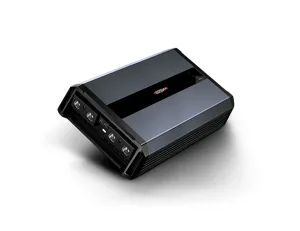

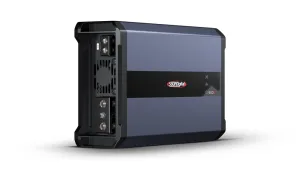

SounDigital 5000.1 BASSTRONIK – 1 Ohm
