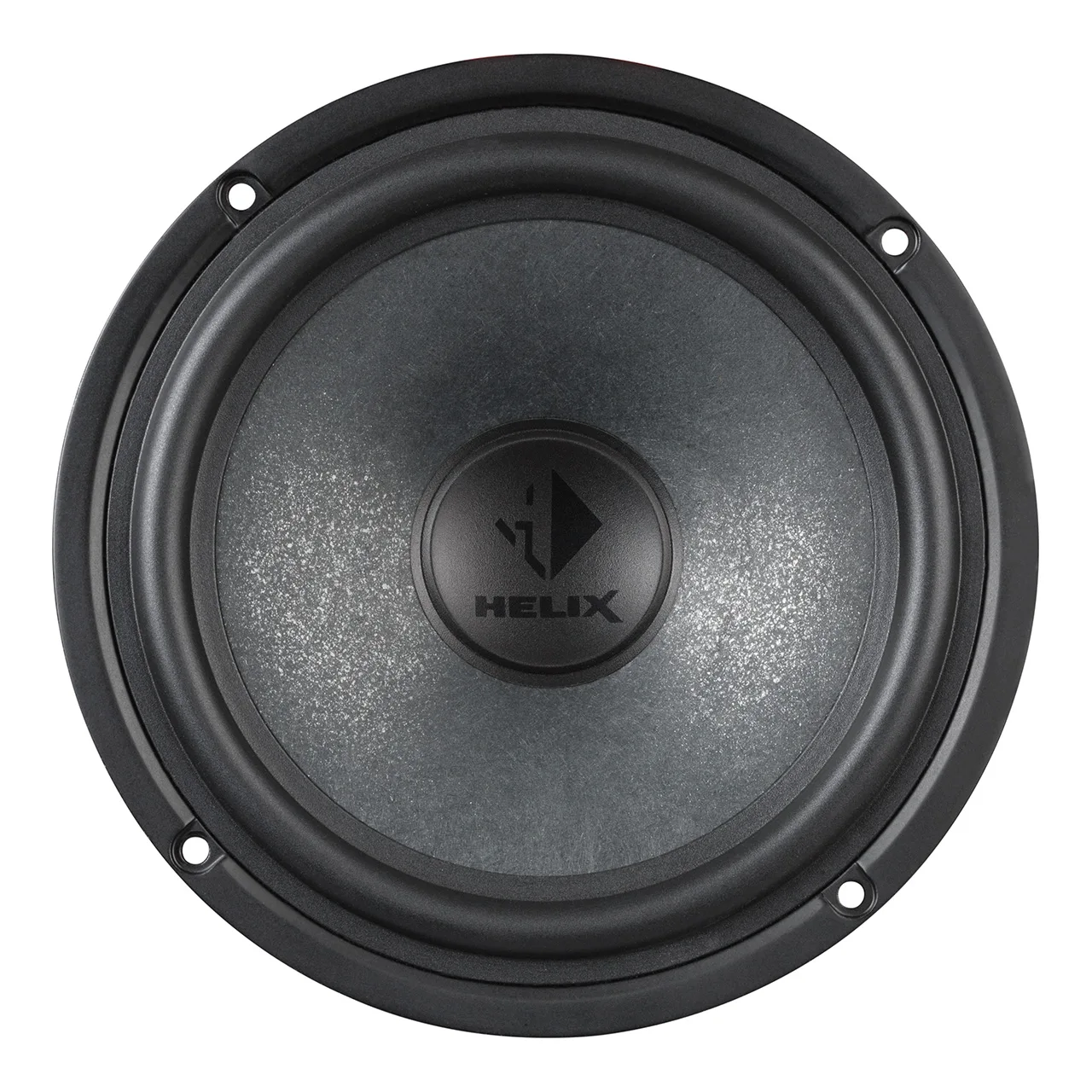

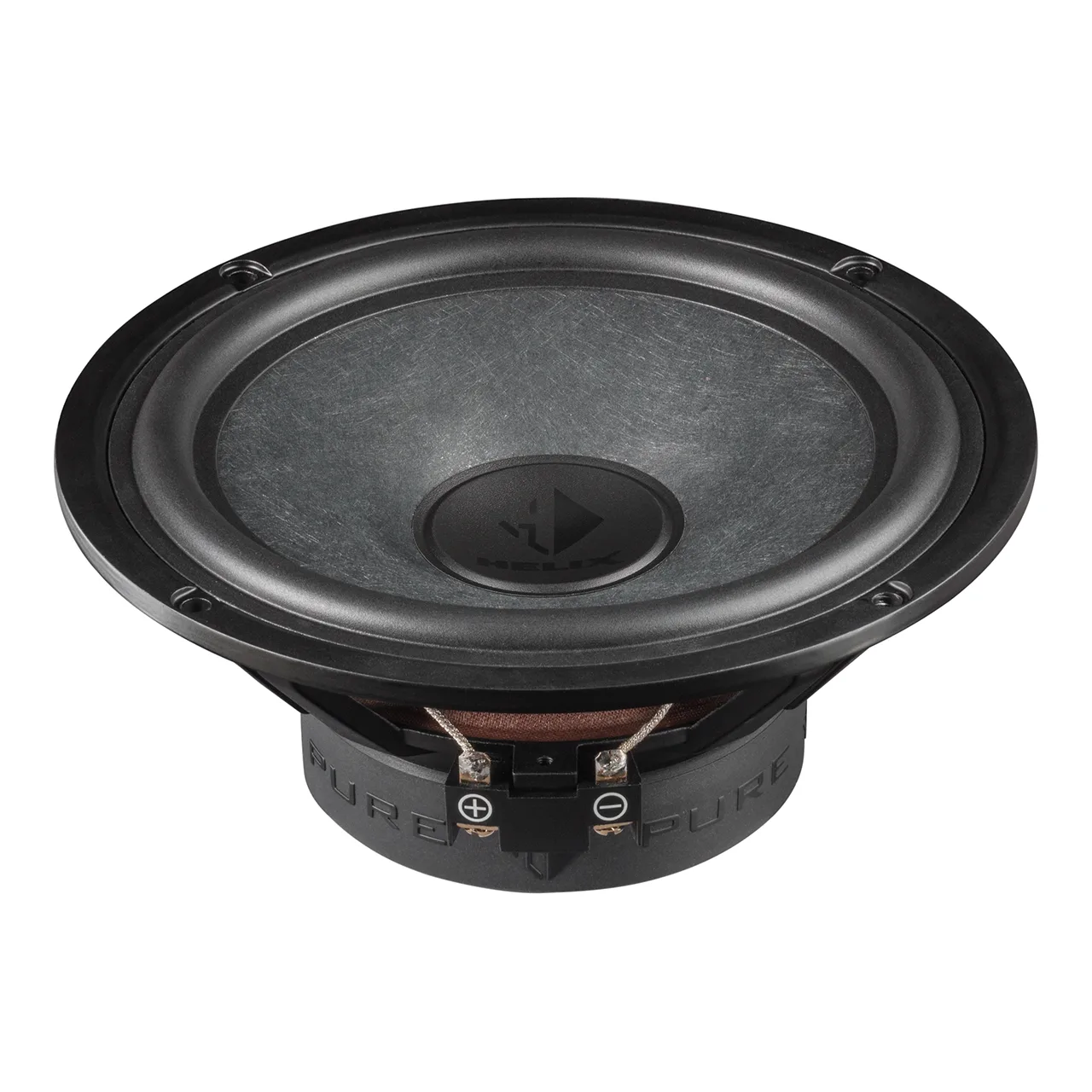

Helix Pure-sarjan High-End midbasso.
Tässä midbassossa on paperi-komposiitti kartio, joka takaa kunnon potkun säilyttäen kuitenkin loistavan äänenlaadun.

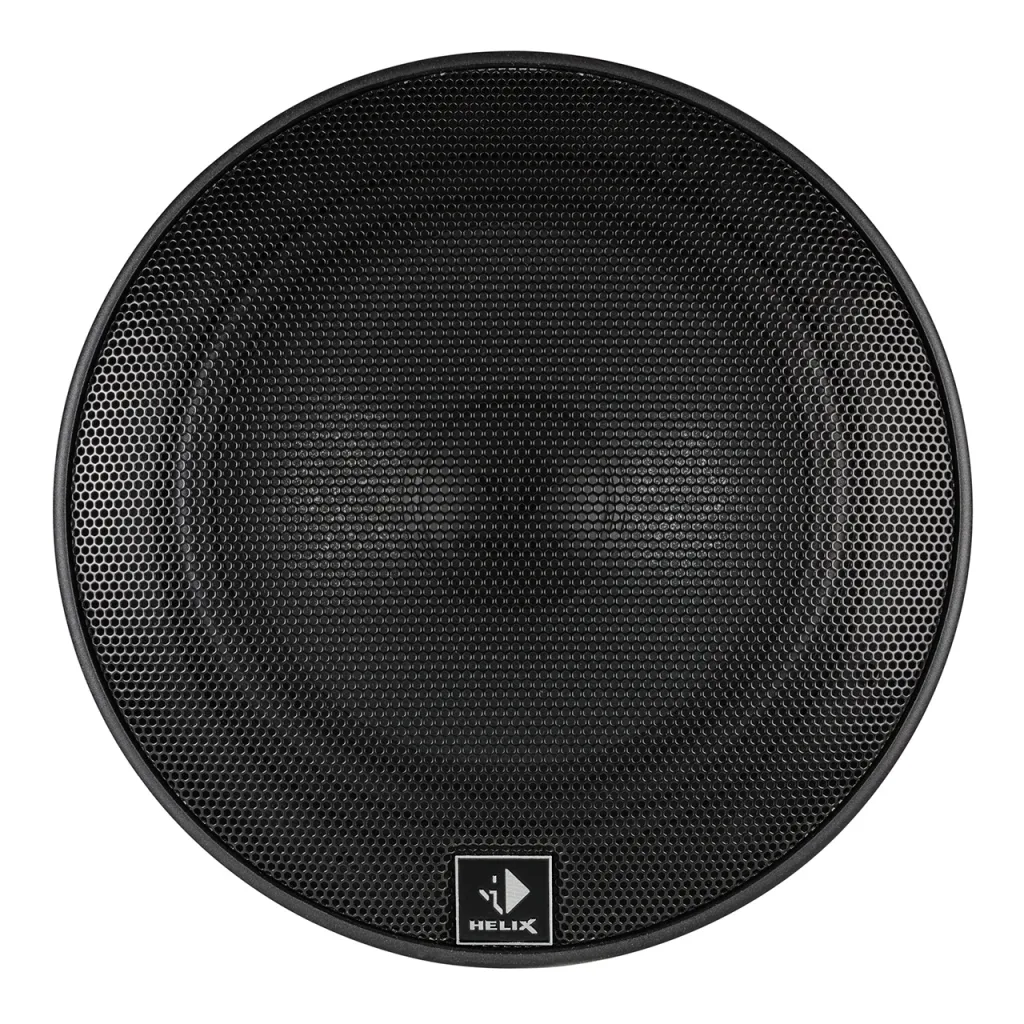

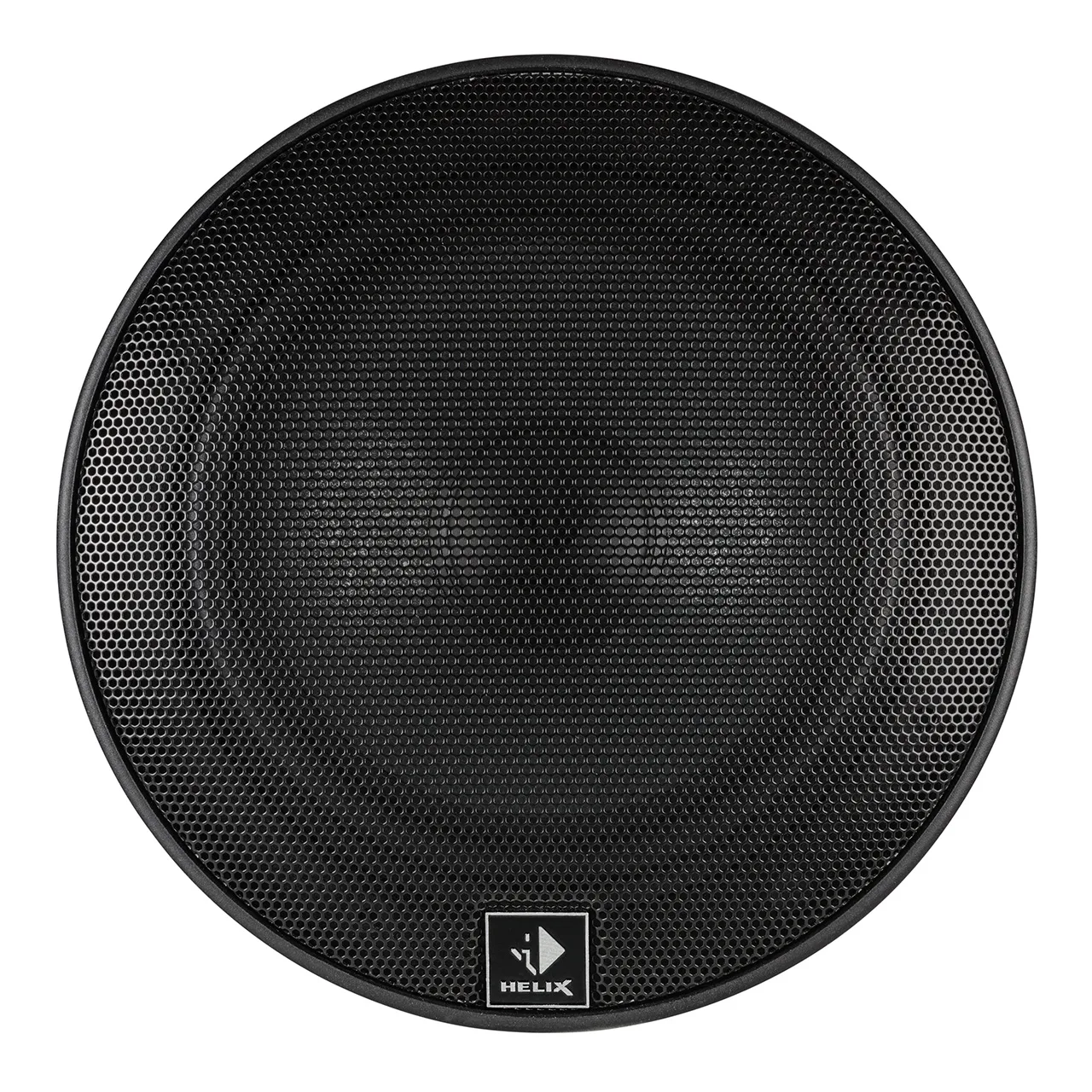

Kaiuttimien suojaritilät sisältyvät pakkaukseen. Parihinta.
Technical data
| Power handling RMS / Max. | P |
|---|
100 / 200 Watts
| Impedance | Z 4 Ω |
|---|---|
| DC resistance | Re 3.1 Ω |
| Frequency response | 40 Hz - 4,000 Hz |
| Resonance frequency | Fs 57 Hz |
| Mechanical Q factor | Qms 5.35 |
| Electrical Q factor | Qes 0.63 |
| Total Q factor | Qts 0.57 |
| Compliance | Cms 440 µm/N |
| Equivalent air volume | Vas 10.8 L |
| Force factor | B*I 6.1 Tm |
| Sensitivity | SPL 91 dB @ 2.83 V / 1m |
88 dB @ 1W / 1m
| Cone area | Sd 133 cm² |
|---|---|
| Moving mass | Mms 17.9 g |
| Cone material | Mica-Paper composite cone |
| Mechanical resistance | Rms 1.19 kg/s |
| Voice coil diameter | ø 25 mm |
| Voice coil winding height | 12 mm |
| Max. linear excursion | Xmax +/- 3 mm |
| Outer diameter | ø 166 mm / 6.54″ |
| Installation diameter | ø 141 mm / 5.55″ |
| Installation depth | 66.5 mm / 2.62″ |
Scope of delivery
- 2 x Woofer PR W165
- 2 x Grille
- 1 x Mounting material
