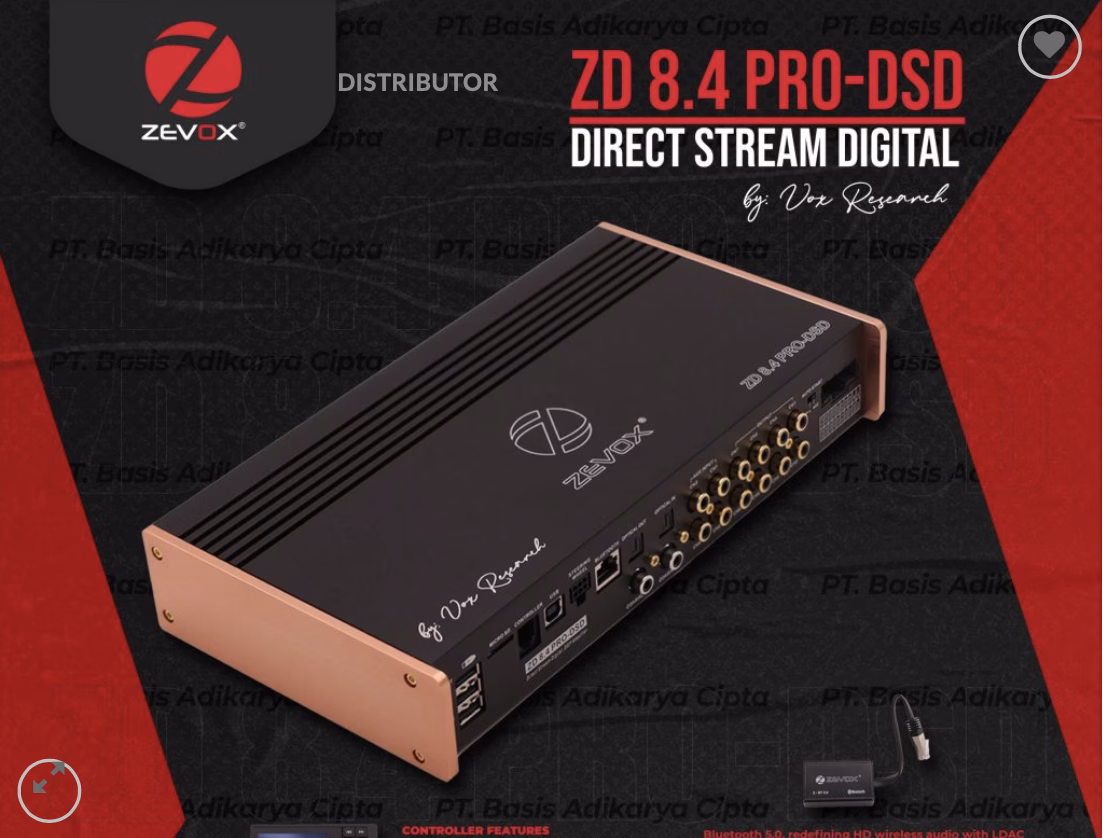

ZD8.4 pro-DSD mk2

Specifications:

• Active Range: ≥110 dB

• S/N Ratio: ≥100 dB

• T.H.D.: ≤0.01%

• Freq. Response: 20 Hz–20 kHz

• Input Impedance: Low level input: 20 kΩ, High level input: 240 Ω

• Low Level Output: 100 Ω

• Power Output (4 Ω): RMS 25 W × 4, Peak Power 50 W × 4

• Signal Input/Output Range: RCA Input: 8 Vpp; High level: 26 Vpp; RCA Output:14Vpp

• Temperature: −20–70 °C

• Supply Voltage: DC 12–14.4 V

• Turn-on REM Output: +12 V starting voltage output (0.2 A)

• Power Consumption: ≤0.1 W

• Crossover: 6 dB/Octave – 48 dB/Octave, Linkwitz Riley, Butterworth & Bessel

• Time Delay: 0.002–50.00 ms, 0.00–1700.0 cm, 0.00–669 inch

• Polarity: 0°/180°

• Phase Adjustment/Shifter: 0°–360°

• AD Chip: AKM 5704

• DA Chip: AKM 4438

• DSP Chip: ADI 1452

• Bluetooth Audio Player

• Android & iOS Audio Player App

• Android & iOS App for DSP Setup & Tuning

• Remote Control Included

• External Bluetooth BT 5.0 Included
